Overview

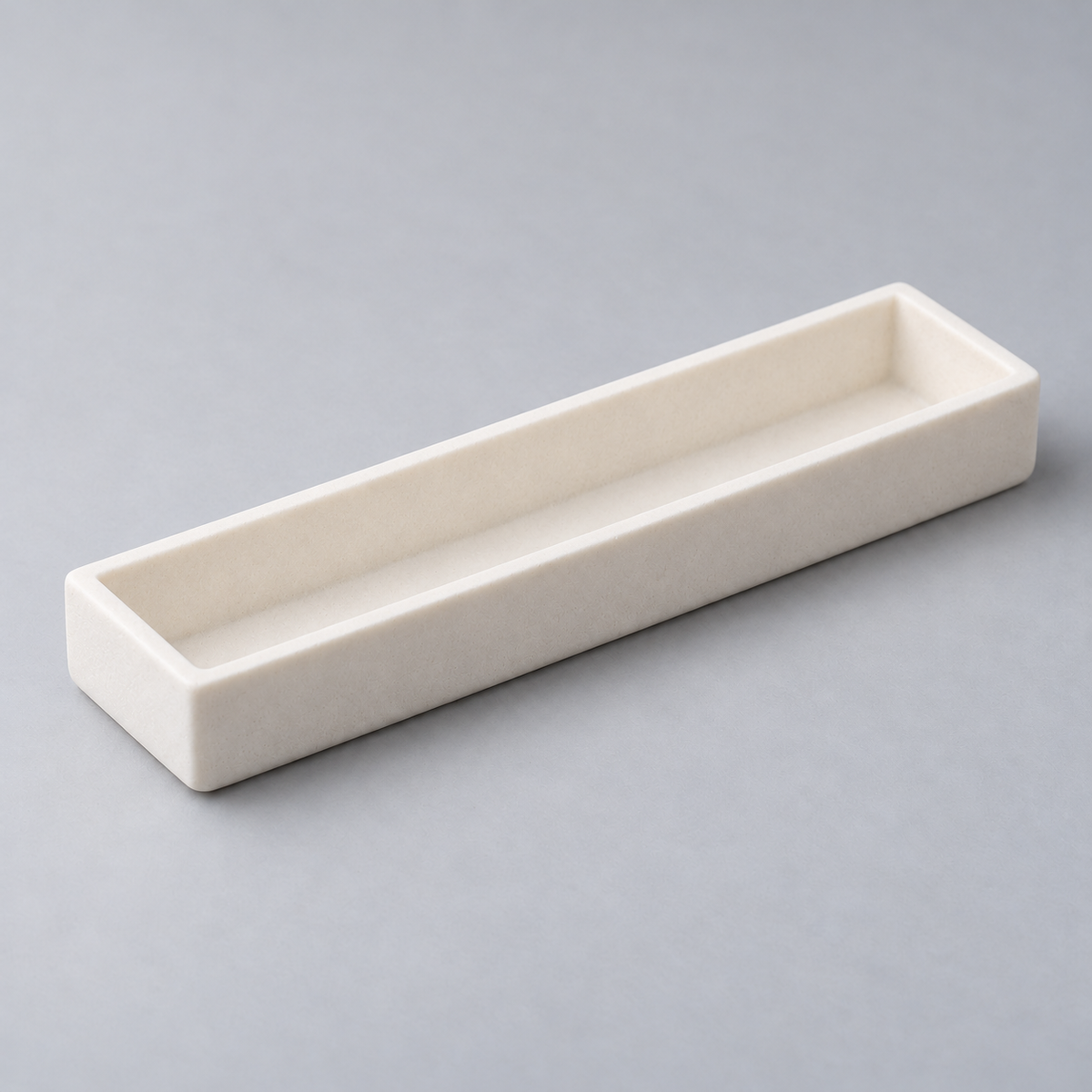

Aluminum oxide is an electrically insulating ceramic. Alumina Boat is offered for semiconductor thin-film research. Select the geometry and operating conditions appropriate to your thermal process.
Technical Specifications
Technical specifications
| Material |
Alumina
|
| Formula / designation |
Al2O3
|
| Form |
Boat
|
| Purity options |
|
| Working temperature |
1600 °C
|
| Size / capacity options |
- Length (L/mm): 150 mm; Width (W/mm): 20 mm; Height (H/mm): 20 mm
- Length (L/mm): 120 mm; Width (W/mm): 80 mm; Height (H/mm): 40 mm
- Length (L/mm): 120 mm; Width (W/mm): 60 mm; Height (H/mm): 40 mm
- Length (L/mm): 120 mm; Width (W/mm): 60 mm; Height (H/mm): 20 mm
View all 50 options- Length (L/mm): 120 mm; Width (W/mm): 30 mm; Height (H/mm): 15 mm
- Length (L/mm): 110 mm; Width (W/mm): 24 mm; Height (H/mm): 17 mm
- Length (L/mm): 100 mm; Width (W/mm): 100 mm; Height (H/mm): 50 mm
- Length (L/mm): 100 mm; Width (W/mm): 50 mm; Height (H/mm): 30 mm
- Length (L/mm): 100 mm; Width (W/mm): 40 mm; Height (H/mm): 20 mm
- Length (L/mm): 100 mm; Width (W/mm): 20 mm; Height (H/mm): 20 mm
- Length (L/mm): 100 mm; Width (W/mm): 10 mm; Height (H/mm): 10 mm
- Length (L/mm): 90 mm; Width (W/mm): 90 mm; Height (H/mm): 30 mm
- Length (L/mm): 90 mm; Width (W/mm): 65 mm; Height (H/mm): 30 mm
- Length (L/mm): 90 mm; Width (W/mm): 60 mm; Height (H/mm): 40 mm
- Length (L/mm): 90 mm; Width (W/mm): 60 mm; Height (H/mm): 20 mm
- Length (L/mm): 90 mm; Width (W/mm): 30 mm; Height (H/mm): 20 mm
- Length (L/mm): 80 mm; Width (W/mm): 10 mm; Height (H/mm): 10 mm
- Length (L/mm): 75 mm; Width (W/mm): 20 mm; Height (H/mm): 20 mm
- Length (L/mm): 70 mm; Width (W/mm): 12 mm; Height (H/mm): 7 mm
- Length (L/mm): 60 mm; Width (W/mm): 30 mm; Height (H/mm): 30 mm
- Length (L/mm): 60 mm; Width (W/mm): 30 mm; Height (H/mm): 15 mm
- Length (L/mm): 50 mm; Width (W/mm): 50 mm; Height (H/mm): 25 mm
- Length (L/mm): 50 mm; Width (W/mm): 40 mm; Height (H/mm): 20 mm
- Length (L/mm): 50 mm; Width (W/mm): 20 mm; Height (H/mm): 20 mm
- Length (L/mm): 50 mm; Width (W/mm): 20 mm; Height (H/mm): 10 mm
- Length (L/mm): 50 mm; Width (W/mm): 10 mm; Height (H/mm): 10 mm
- Length (L/mm): 45 mm; Width (W/mm): 8 mm; Height (H/mm): 6 mm
- Length (L/mm): 30 mm; Width (W/mm): 20 mm; Height (H/mm): 17 mm
- Length (L/mm): 25 mm; Width (W/mm): 15 mm; Height (H/mm): 15 mm
- Length (L/mm): 20 mm; Width (W/mm): 20 mm; Height (H/mm): 17 mm
- Length (L/mm): 250 mm; Width (W/mm): 40 mm; Height (H/mm): 18 mm
- Length (L/mm): 150 mm; Width (W/mm): 40 mm; Height (H/mm): 20 mm
- Length (L/mm): 100 mm; Width (W/mm): 65 mm; Height (H/mm): 30 mm
- Length (L/mm): 100 mm; Width (W/mm): 40 mm; Height (H/mm): 25 mm
- Length (L/mm): 100 mm; Width (W/mm): 30 mm; Height (H/mm): 20 mm
- Length (L/mm): 100 mm; Width (W/mm): 20 mm; Height (H/mm): 15 mm
- Length (L/mm): 60 mm; Width (W/mm): 54 mm; Height (H/mm): 24 mm
- Length (L/mm): 55 mm; Width (W/mm): 35 mm; Height (H/mm): 22 mm
- Length (L/mm): 40 mm; Width (W/mm): 35 mm; Height (H/mm): 25 mm
- Length (L/mm): 40 mm; Width (W/mm): 25 mm; Height (H/mm): 17 mm
- Length (L/mm): 38 mm; Width (W/mm): 34 mm; Height (H/mm): 18 mm
- Length (L/mm): 115 mm; Width (W/mm): 30 mm; Height (H/mm): 20 mm
- Length (L/mm): 97 mm; Width (W/mm): 17 mm; Height (H/mm): 12 mm
- Length (L/mm): 88 mm; Width (W/mm): 15 mm; Height (H/mm): 9 mm
- Length (L/mm): 77 mm; Width (W/mm): 13 mm; Height (H/mm): 8 mm
- Length (L/mm): 60 mm; Width (W/mm): 11 mm; Height (H/mm): 8 mm
- Length (L/mm): 44 mm; Width (W/mm): 11 mm; Height (H/mm): 8 mm
- Length (L/mm): 43 mm; Width (W/mm): 11 mm; Height (H/mm): 11 mm
- Length (L/mm): 40 mm; Width (W/mm): 10 mm; Height (H/mm): 7 mm
- Length (L/mm): 27 mm; Width (W/mm): 7 mm; Height (H/mm): 6 mm
|
| Molar mass (formula reference) |
101.961 g/mol
|
| Density (reference) |
3.9 g/cm³
|
Final specifications, available configurations, pricing, and lead time are confirmed during quotation.
Applications
- Semiconductor thin-film research
- Catalysis research
Customization & RFQ
Requested material grade, vessel dimensions or capacity, atmosphere, operating temperature and quantity.
