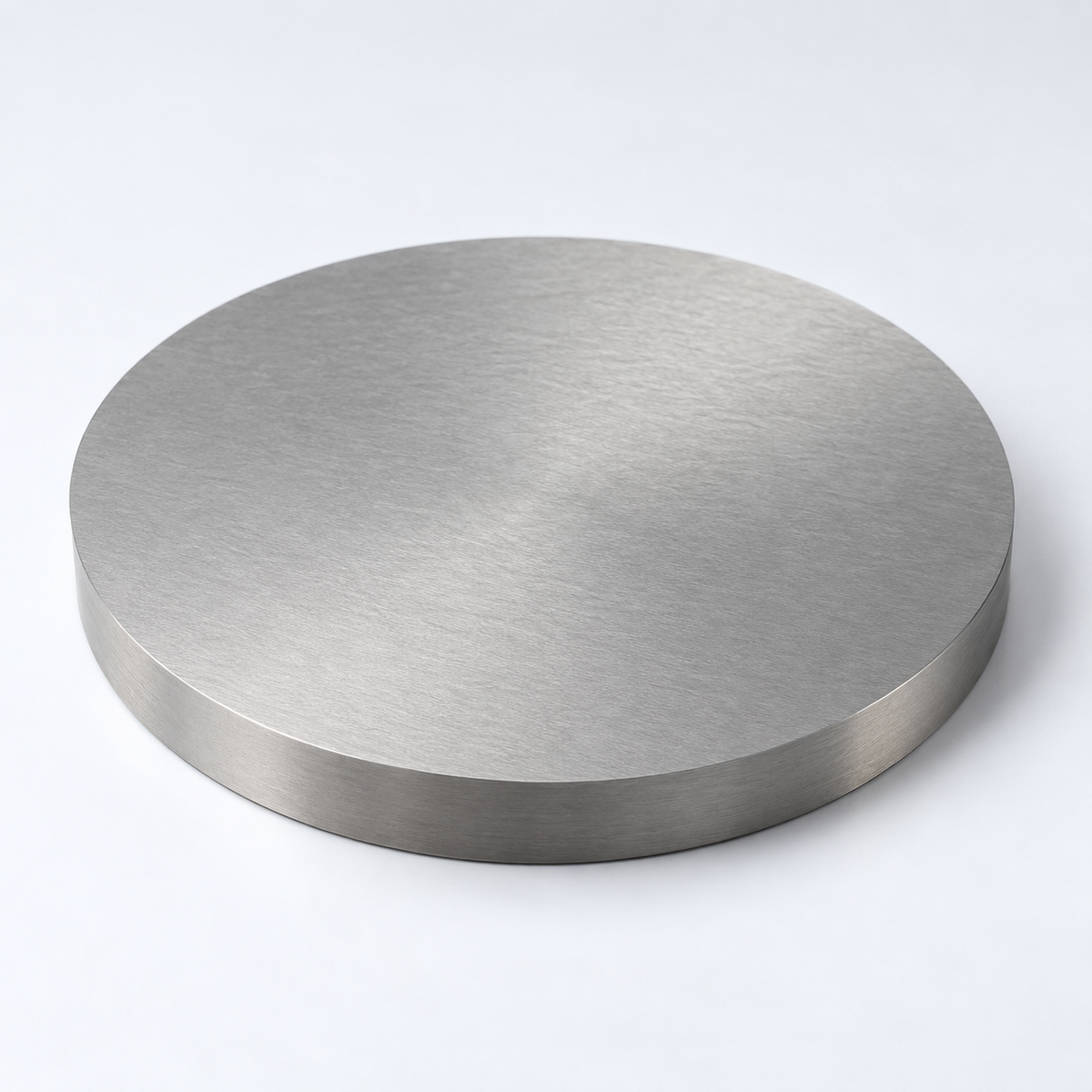

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.
Overview
Technical Specifications
| Material | Cobalt Iron Boron |
|---|---|
| Form | Sputtering Target |
| Purity options | |
| Size options |
View all 7 options |
| Composition options | Co-Fe-B Alloy (Co:Fe:B = 40:40:20 at% standard; other ratios available) |
| Shape options | Discs |
| Deposition method (reference) | DC or RF (conductive) |
| Production process | Vacuum melting / Powder metallurgy + precision machining |
| Bonding options | Indium (standard); copper backing plate optional |
| Thickness | 3.175 mm, 6.35 mm, or custom |
| Density (reference) | ≈8.8 g/cm^3 |
| Melting point (reference) | ≈1250°C (varies with composition) |
Chemical Composition
| Element | Nominal composition (at%) |
|---|---|
| Co | 60 |
| Fe | 20 |
| B | 20 |
Final specifications, available configurations, pricing, and lead time are confirmed during quotation.
Applications
- Magnetic thin-film studies
- Powder metallurgy
Customization & RFQ
Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.
Request a product-specific SDS
Please request the SDS for your specific material and configuration.
REQUEST A QUOTE
Tell us what you need
Cobalt Iron Boron Sputtering Target is included automatically. Tell us the form, size and quantity you need; other details are optional.
