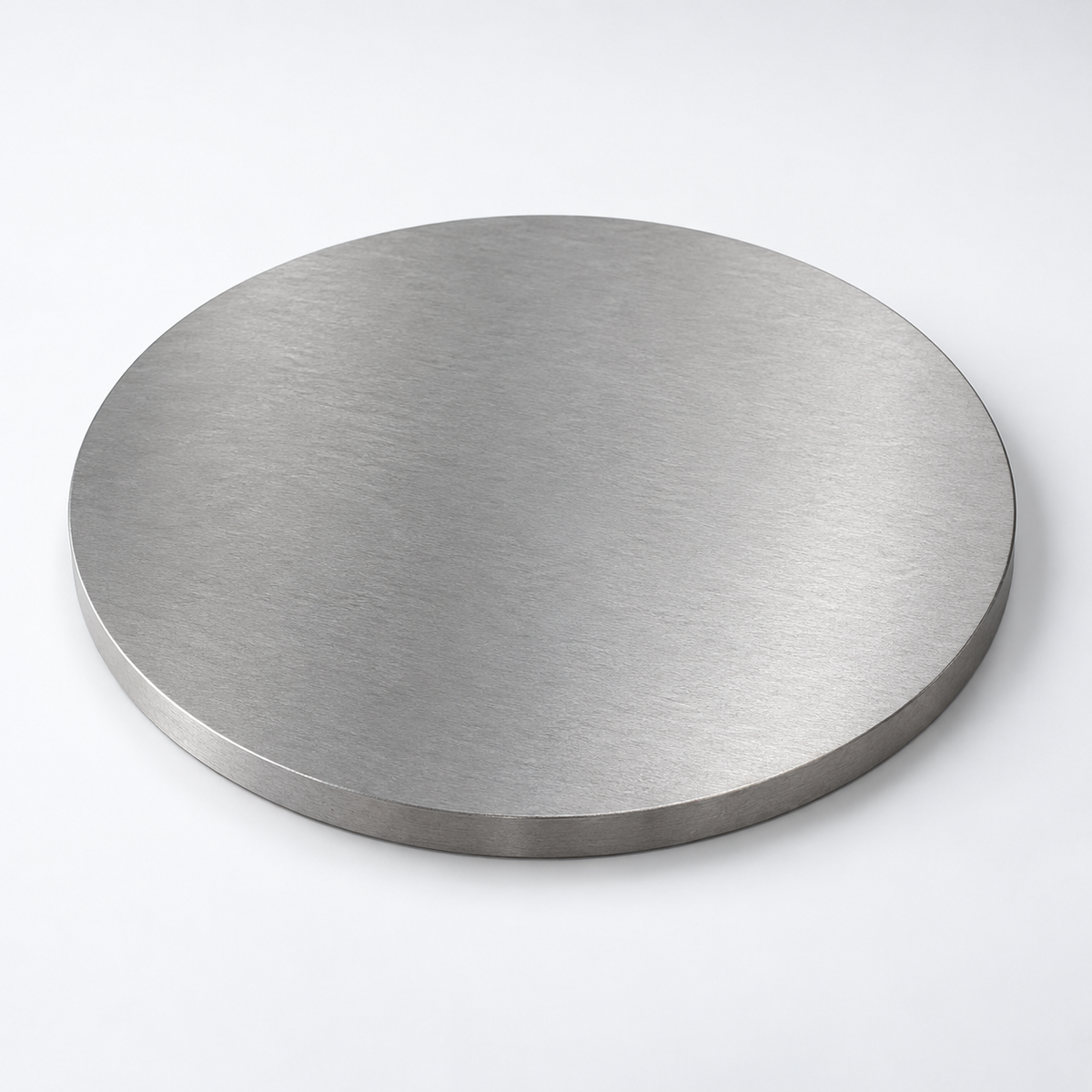

Representative image of Cobalt Planar Target

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Cobalt Planar Target

Grade / formula: Co

Made to Order

Request a quote

Overview

Cobalt Planar Target is offered for semiconductor thin-film research. Specify the target configuration and dimensions required by your deposition system.

Technical Specifications

Material Cobalt
Chemical symbol Co
Form Sputtering Target
Target configuration Planar
Deposition method (reference) DC
Purity options
  • 99.95%
  • 99.99%
  • ≥99%
Size options
  • 25.4 mm Dia. x 1.5875 mm Thick
  • 25.4 mm Dia. x 3.175 mm Thick
  • 25.4 mm Dia. x 6.35 mm Thick
  • 50.8 mm Dia. x 1.5875 mm Thick
View all 22 options
  • 50.8 mm Dia. x 3.175 mm Thick
  • 50.8 mm Dia. x 6.35 mm Thick
  • 50.8 mm Dia. x 1mm Thick
  • 50.8 mm Dia. x 2mm Thick
  • 76.2 mm Dia. x 1.5875 mm Thick
  • 76.2 mm Dia. x 2.032 mm Thick
  • 76.2 mm Dia. x 3.175 mm Thick
  • 76.2 mm Dia. x 6.35 mm Thick
  • 101.6 mm Dia. x 2.54 mm Thick
  • 101.6 mm Dia. x 3.175 mm Thick
  • 101.6 mm Dia. x 6.35 mm Thick
  • 101.6 mm Dia. x 0.5mm Thick
  • 57mm Dia. x 0.1mm Thick
  • 57mm Dia. x 0.3mm Thick
  • 152.4 mm Dia. x 3.175 mm Thick
  • 152.4 mm Dia. x 6.35 mm Thick
  • 203.2 mm Dia. x 3.175 mm Thick
  • 203.2 mm Dia. x 6.35 mm Thick
CAS number 7440-48-4
Shape options Discs
Diameter 50.8 mm, 76.2 mm, 101.6 mm, 127 mm, 152.4 mm
Thickness 6.35 mm, 3.175 mm
Standard atomic weight (reference) 58.933 ± 0.001
Density (reference) 8.86 g/cm³
Melting point (reference) 1495 °C
Thermal conductivity (reference) 100 W/m.K

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Applications

  • Semiconductor thin-film research
  • Optical coatings

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.

Request a Quote

Request a product-specific SDS

Please request the SDS for your specific material and configuration.

Request SDS
