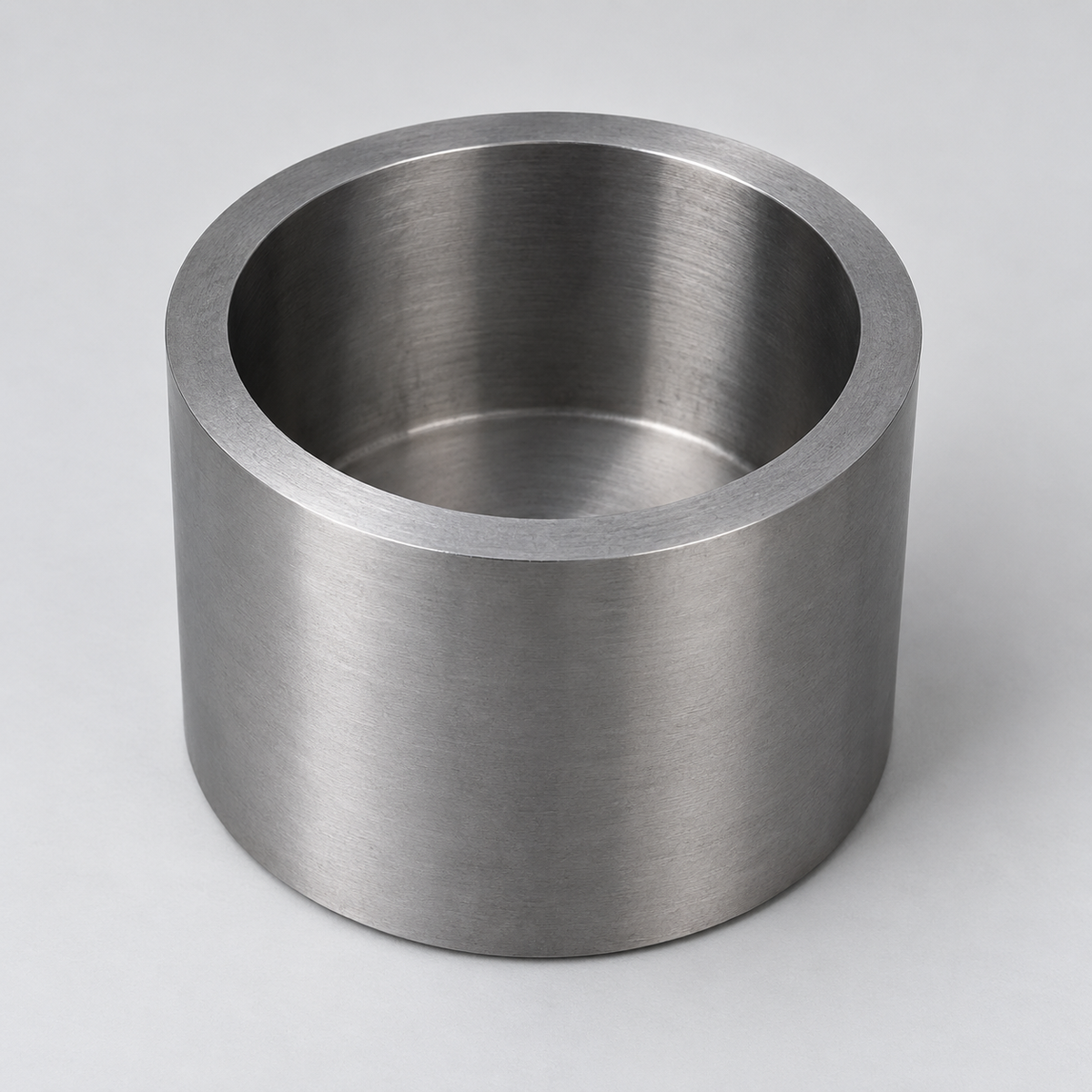

Molybdenum crucibles for selected vacuum and thermal-processing applications. Choose a cup configuration or submit a drawing for a custom body, with the charge and operating conditions for material review.
Technical Specifications
Technical specifications
Material
Molybdenum
Formula / designation
Mo
Form
Crucible
Size / capacity options
Capacity (mL): 2 mL; Top Diameter A (mm): 21.5 (21.4884 mm); Height B (mm): 11.8 (11.811 mm); Wall thickness C (mm): 2.4 (2.3622 mm)
Capacity (mL): 7 mL; Top Diameter A (mm): 28.6 (28.575 mm); Height B (mm): 13.2 (13.208 mm); Wall thickness C (mm): 2.4 (2.3622 mm)
Capacity (mL): 15 mL; Top Diameter A (mm): 37.6 (37.592 mm); Height B (mm): 17.0 (17.018 mm); Wall thickness C (mm): 3.2 (3.175 mm)
Capacity (mL): 40 mL; Top Diameter A (mm): 51.6 (51.562 mm); Height B (mm): 25.9 (25.908 mm); Wall thickness C (mm): 6.4 (6.35 mm)
View all 16 options
10-500 mm OD x 10-600 mm L
Capacity: Cap (ml), 1000; Outside Diameter: Outside Dia (mm), 127
Capacity: Cap (ml), 100; Outside Diameter: Outside Dia (mm), 59
Capacity: Cap (ml), 10; Outside Diameter: Outside Dia (mm), 27
Capacity: Cap (ml), 15; Outside Diameter: Outside Dia (mm), 33
Capacity: Cap (ml), 20; Outside Diameter: Outside Dia (mm), 33
Capacity: Cap (ml), 25; Outside Diameter: Outside Dia (mm), 45
Capacity: Cap (ml), 35; Outside Diameter: Outside Dia (mm), 46
Capacity: Cap (ml), 45; Outside Diameter: Outside Dia (mm), 46
Capacity: Cap (ml), 55; Outside Diameter: Outside Dia (mm), 47
Capacity: Cap (ml), 5; Outside Diameter: Outside Dia (mm), 21
Capacity: Cap (ml), 75; Outside Diameter: Outside Dia (mm), 51
Purity options
Mo≥99.95%
Density (reference)
10.2 g/cm³
Melting point (reference)
2622 °C
Final specifications, available configurations, pricing, and lead time are confirmed during quotation.
Applications
Crystal-growth processing
Metal melting and thermal processing
Customization & RFQ
Requested material grade, vessel dimensions or capacity, atmosphere, operating temperature and quantity.
Machined bodies, pressed-and-sintered bodies, and formed or fabricated constructions can be reviewed against the drawing. Specify if a one-piece body is required.
Nominal capacity identifies a configuration, not a guaranteed working fill. External height, base thickness, tolerances and any unspecified dimensions are agreed on the final drawing.
Illustrative schematic — not to scale. Open to enlarge.
Process review
Share the charge composition, atmosphere, temperature definition, hold time, thermal cycles and contamination limits. No universal melt compatibility or continuous-use temperature is implied.
