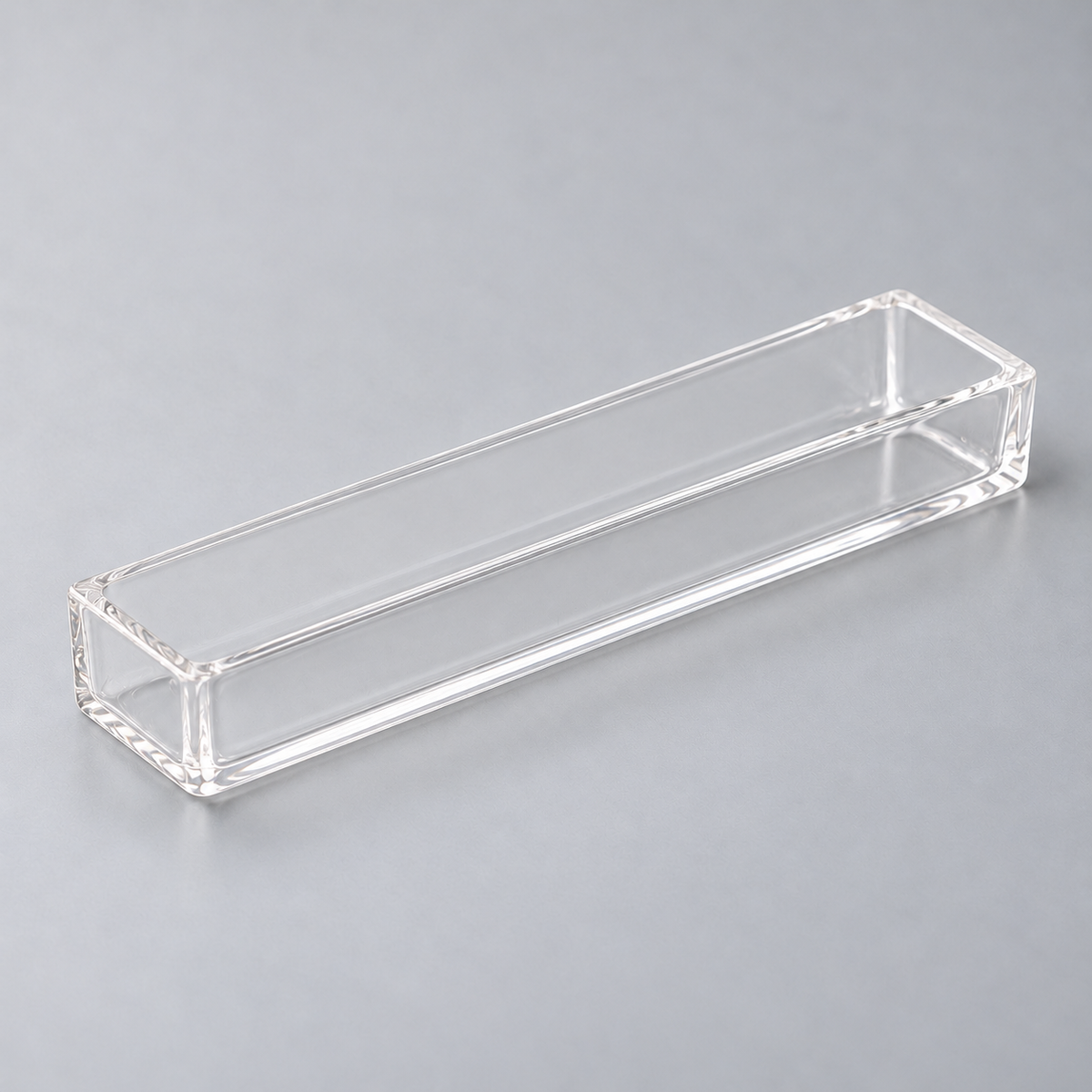

Representative image of Quartz Evaporation Boat: flat-bottom rectangular clear quartz boat with equal-height straight walls.

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / CRUCIBLE

Quartz Evaporation Boat

Grade / formula: SiO2

Made to Order

Request a quote

Overview

Quartz Evaporation Boat is offered for semiconductor thin-film research. The source is supplied in boat form; specify the loading geometry and required source quantity.

Technical Specifications

Material Quartz
Formula / designation SiO2
Form Evaporation Boat
Size / capacity options
  • Capacity (mL): 2.5 mL; Length (mm): 61 mm; Width (mm): 15 mm; Height (mm): 6.9 mm
  • Capacity (mL): 6 mL; Length (mm): 114 mm; Width (mm): 18 mm; Height (mm): 8.5 mm
  • Capacity (mL): 15 mL; Length (mm): 113 mm; Width (mm): 25 mm; Height (mm): 12 mm
  • Capacity (mL): 30 mL; Length (mm): 133 mm; Width (mm): 33 mm; Height (mm): 16.5 mm
View all 8 options
  • Capacity (mL): 30 mL; Length (mm): 119 mm; Width (mm): 35 mm; Height (mm): 17.5 mm
  • Capacity (mL): 51 mL; Length (mm): 116 mm; Width (mm): 45 mm; Height (mm): 22.7 mm
  • Capacity (mL): 100 mL; Length (mm): 171 mm; Width (mm): 50 mm; Height (mm): 23.5 mm
  • 4”
Working temperature 1100-1200°C
Purity options 99.99%
Molar mass (formula reference) 60.083 g/mol
Density (reference) 2.2g/cm³
Melting point (reference) 1660-1710°C

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Applications

  • Semiconductor thin-film research
  • Photovoltaic thin films

Customization & RFQ

Requested material grade, vessel dimensions or capacity, atmosphere, operating temperature and quantity.

Request a Quote

Request a product-specific SDS

Please request the SDS for your specific material and configuration.

Request SDS
