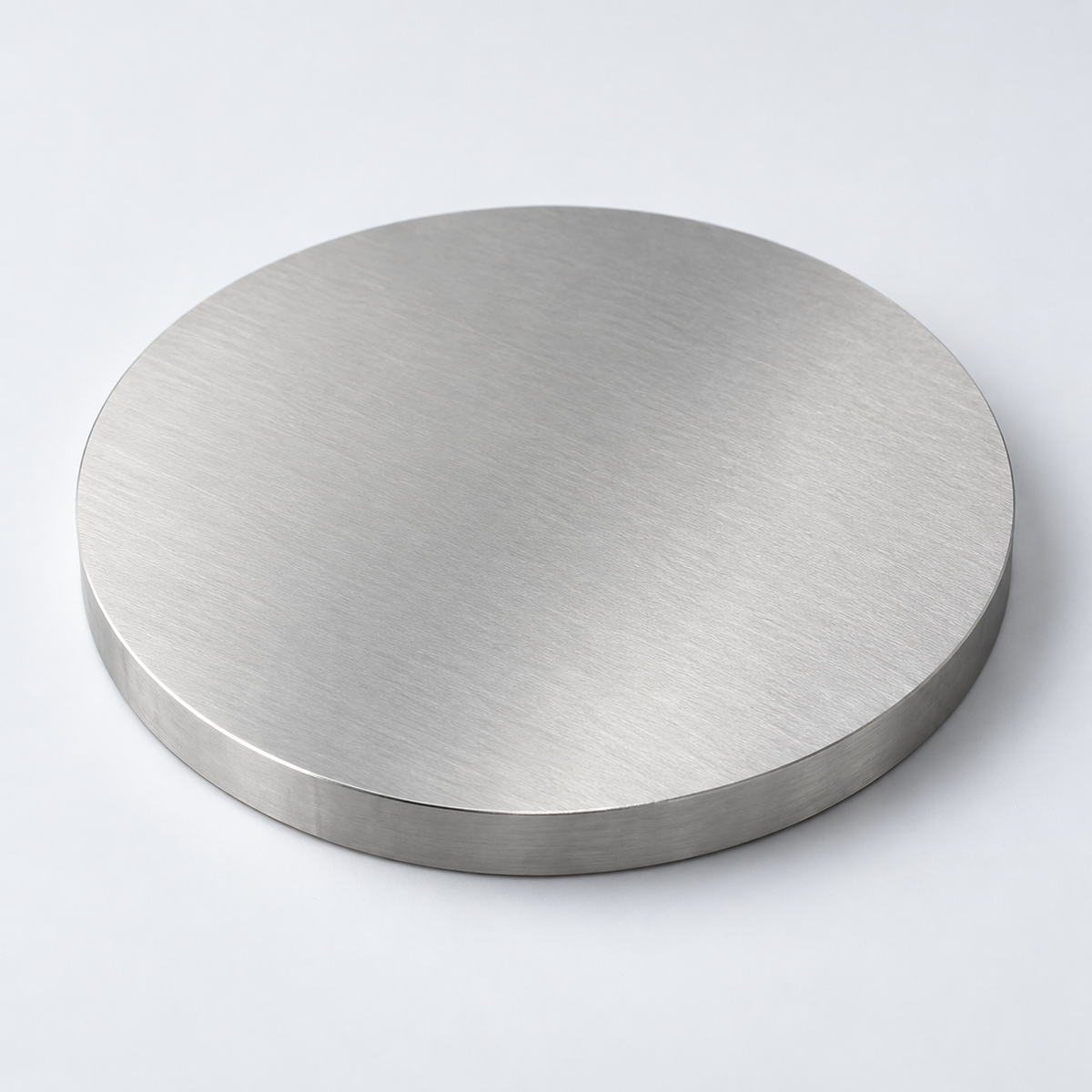

Representative image of Silver Planar Target

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Silver Planar Target

Grade / formula: Ag

Made to Order

Request a quote

Overview

Silver Planar Target is offered for photovoltaic thin films. Specify the target configuration and dimensions required by your deposition system.

Technical Specifications

Material Silver
Chemical symbol Ag
Form Sputtering Target
Target configuration Planar
Deposition method (reference) DC
Bonding options Indium, Elastomer
Purity options
  • 99.99%
  • ≥99%
Size options
  • 25.4 mm Dia. x 3.175 mm Thick
  • 25.4 mm Dia. x 6.35 mm Thick
  • 50.8 mm Dia. x 3.175 mm Thick
  • 50.8 mm Dia. x 6.35 mm Thick
View all 20 options
  • 76.2 mm Dia. x 3.175 mm Thick
  • 76.2 mm Dia. x 6.35 mm Thick
  • 101.6 mm Dia. x 3.175 mm Thick
  • 101.6 mm Dia. x 6.35 mm Thick
  • 57mm Dia. x 0.1mm Thick
  • 57mm Dia. x 0.2mm Thick
  • 57mm Dia. x 0.3mm Thick
  • 57mm Dia. x 0.5mm Thick
  • 57mm Dia. x 1mm Thick
  • 57mm Dia. x 2mm Thick
  • 152.4 mm Dia. x 6.35 mm Thick
  • 203.2 mm Dia. x 6.35 mm Thick
  • 25.4 mm Dia x 3.175 mm Thick
  • 50.8 mm Dia x 3.175 mm Thick
  • 76.2 mm Dia x 3.175 mm Thick
  • Dia. ≤355.6 mm Thickness ≥1 mm
CAS number 7440-22-4
Shape options Discs
Standard atomic weight (reference) 107.87 ± 0.01
Density (reference) 10.5 g/cm³
Melting point (reference) 961.78 °C
Thermal conductivity (reference) 430 W/m.K

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Applications

  • Photovoltaic thin films

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.

Request a Quote

Request a product-specific SDS

Please request the SDS for your specific material and configuration.

Request SDS
REQUEST A QUOTE

Tell us what you need

Silver Planar Target is included automatically. Tell us the form, size and quantity you need; other details are optional.

For made-to-drawing assemblies, include the drawing number and revision in your notes and email the drawing to sales@basismaterials.com. Assembly suitability and the bonding method are reviewed for your material and equipment.
