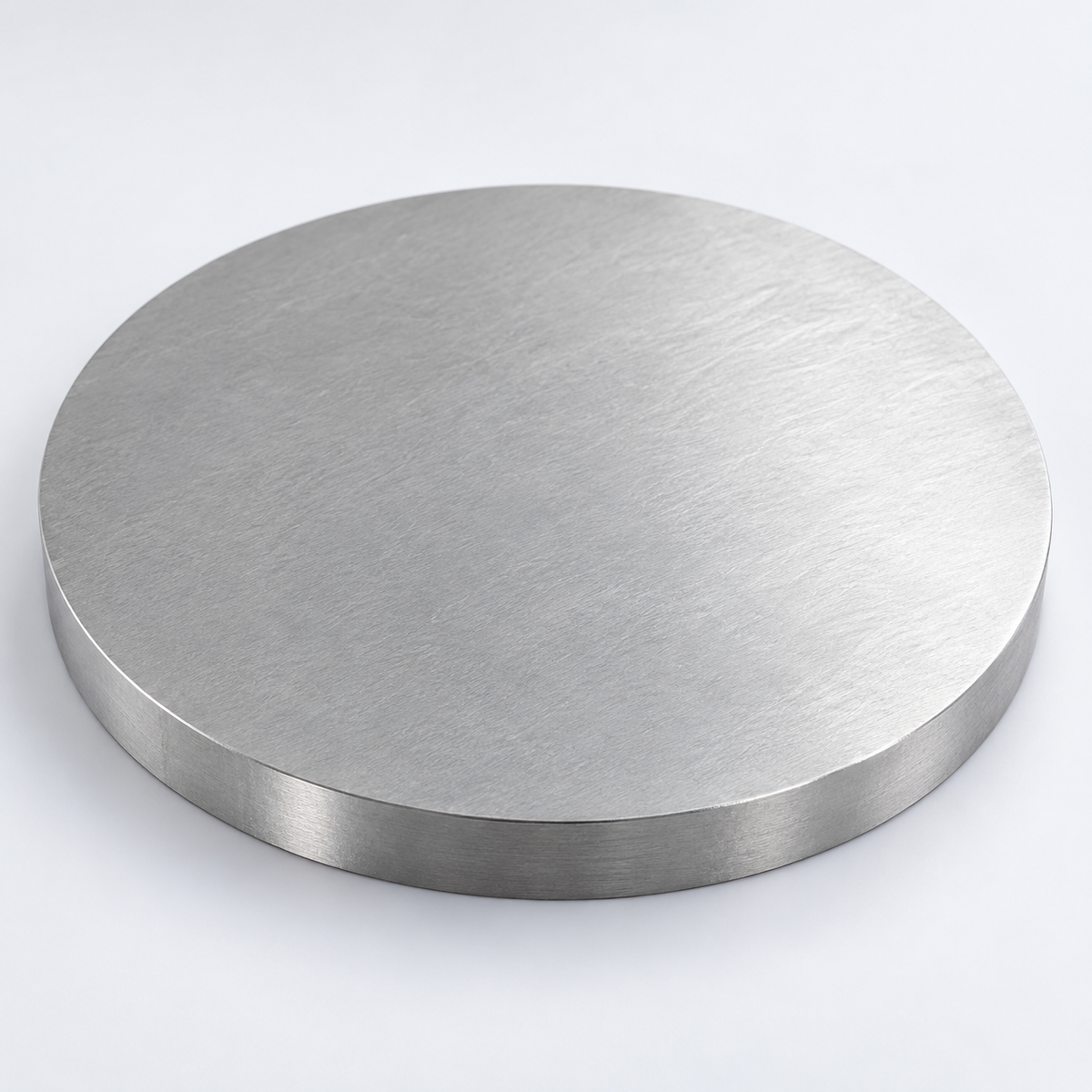

Representative image of Tin (Sn) Sputtering Target

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Tin (Sn) Sputtering Target

Grade / formula: Sn

Made to Order

Request a quote

Overview

Tin (Sn) Sputtering Target is offered for semiconductor thin-film research. Specify the target configuration and dimensions required by your deposition system.

Technical Specifications

Technical specifications
Material Tin (Sn)
Chemical symbol Sn
Form Sputtering Target
Deposition method (reference) DC
Bonding options
  • Indium
  • Elastomer
CAS number
  • 39332-13-3
  • 7440-31-5
Shape options
  • Discs
  • Rectangle
  • Step
  • Plates
View all 6 options
  • Sheets
  • Rods
Purity and size configurations
  • 99.994%-99.999%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 152.4 mm Dia. x 3.175 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 3.175 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
  • 99.99%: 50.8 mm Dia. x 3.175 mm Thick
Diameter options represented above 25.4, 50.8, 76.2, 101.6, 152.4, 203.2 mm
Thickness options represented above 3.175, 6.35 mm
Standard atomic weight (reference) 118.71 ± 0.01
Density (reference) 7.287 g/cm³
Melting point (reference) 231.928 °C
Thermal conductivity (reference) 66.6 W/m.K

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Applications

  • Semiconductor thin-film research
  • Display thin-film research
  • Protective coating development

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.

Request a Quote

Request a product-specific SDS

Please request the SDS for your specific material and configuration.

Request SDS
REQUEST A QUOTE

Tell us what you need

Tin (Sn) Sputtering Target is included automatically. Tell us the form, size and quantity you need; other details are optional.

For made-to-drawing assemblies, include the drawing number and revision in your notes and email the drawing to sales@basismaterials.com. Assembly suitability and the bonding method are reviewed for your material and equipment.
