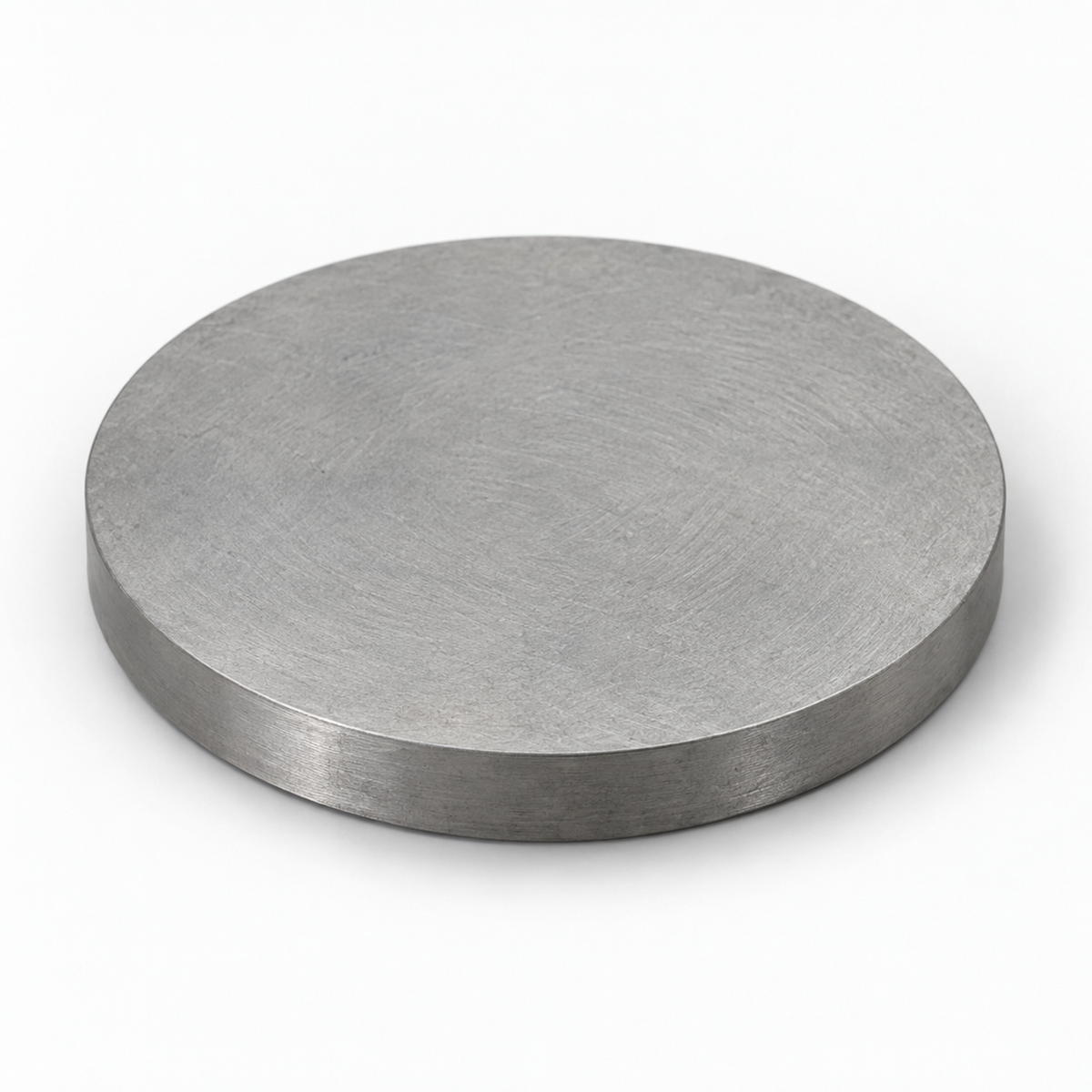

Basis Materials representative image of Zinc Planar Target

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Zinc Planar Target

Grade / formula: Zn

Made to Order

Request a quote

Overview

Zinc Planar Target is offered for thin-film deposition research. Specify the target configuration and dimensions required by your deposition system.

Technical Specifications

Technical specifications
Material Zinc
Chemical symbol Zn
Form Sputtering Target
Target configuration Planar
Deposition method (reference)
  • DC
  • DC, RF
Bonding options
  • Indium
  • Elastomer
  • Copper backing plate (Indium or Elastomer bonding available)
CAS number 7440-66-6
Shape options Discs
Production process Vacuum Melting + Precision Machining
Relative density >99%
Thickness Range 3.175 mm, 6.35 mm
Purity and size configurations
  • 99.99%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick
  • 99.995%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 152.4 mm Dia. x 3.175 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
Diameter options represented above 25.4, 50.8, 76.2, 101.6, 152.4, 203.2 mm
Thickness options represented above 3.175, 6.35 mm
Standard atomic weight (reference) 65.38 ± 0.02
Density (reference) 7.134 g/cm³
Melting point (reference) 419.527 °C
Thermal conductivity (reference) 116 W/m.K
Electrical resistivity (published) 5.9 µΩ·cm (at 20°C)

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.

Request a Quote

Request a product-specific SDS

Please request the SDS for your specific material and configuration.

Request SDS
REQUEST A QUOTE

Tell us what you need

Zinc Planar Target is included automatically. Tell us the form, size and quantity you need; other details are optional.

For made-to-drawing assemblies, include the drawing number and revision in your notes and email the drawing to sales@basismaterials.com. Assembly suitability and the bonding method are reviewed for your material and equipment.
