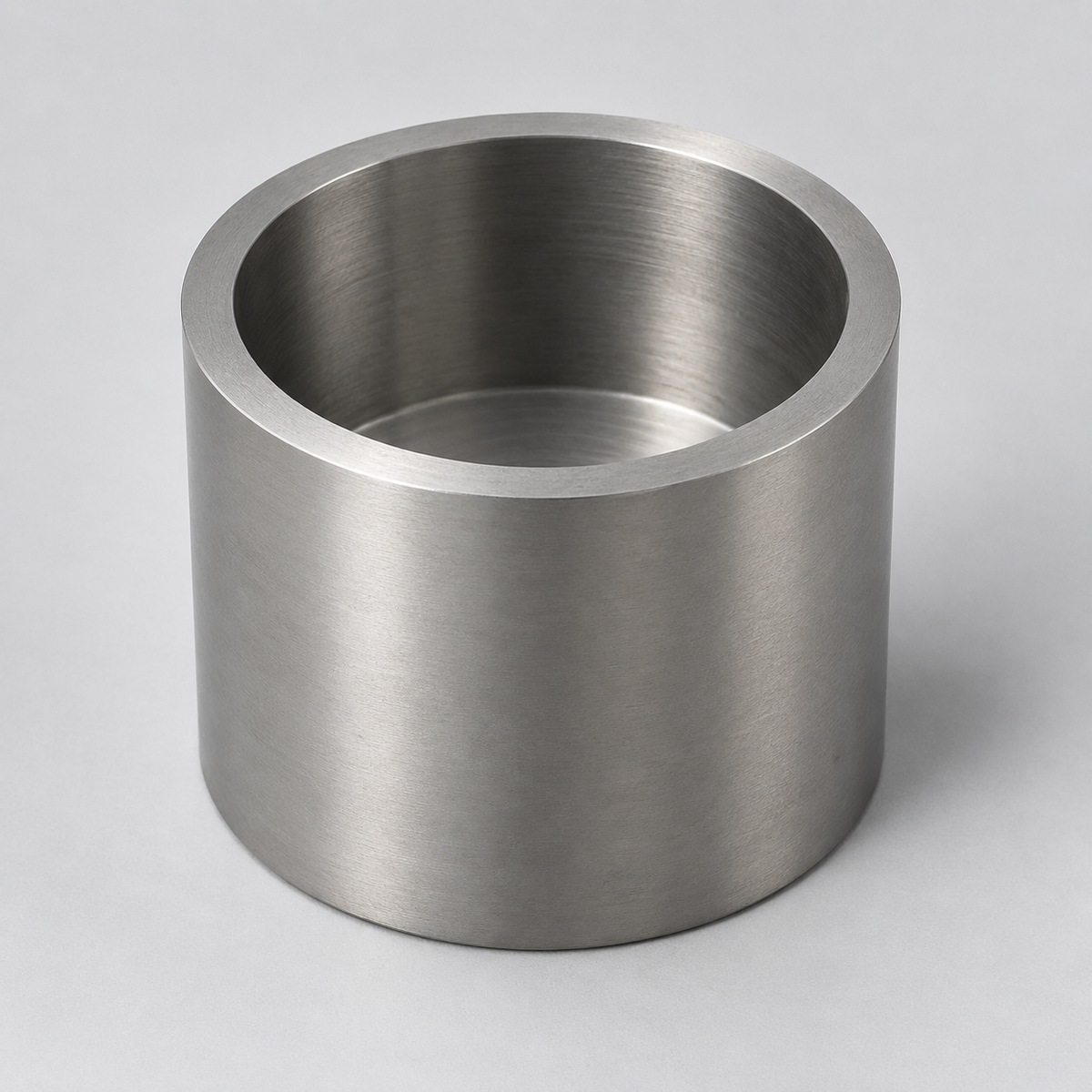

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.
Overview
Niobium cups and custom crucibles for material-specific vacuum-processing review. Drawing-based grades and a nominal 75 mL cup option are distinct configurations; specify the chemistry and geometry required for your process.
Technical Specifications
| Material | Niobium (Nb) |
|---|---|
| Purity option | ≥99.95% (drawing-based grade option) |
| Linked geometry options | |
| Wall and base requirements | Specify wall thickness and base thickness separately on the drawing. Do not infer a guaranteed minimum wall from nominal OD and ID. |
| Requestable configurations | Lid / flange and mating fit; base geometry; surface finish; dimensional inspection requirements — subject to drawing review |
Final specifications, available configurations, pricing, and lead time are confirmed during quotation.
Applications
- Material-specific vacuum-processing review
- Custom laboratory thermal-processing vessels
Customization & RFQ
Specify charge, atmosphere, temperature and hold time, drawing revision, OD/ID, external height, internal depth, wall/base thickness, quantity in pieces and inspection needs.
Geometry and construction
Deep drawing, spinning or machining can be considered for niobium cup geometries. Specify joint restrictions; the final route, any joining and finishing are reviewed for the drawing.
Nominal capacity identifies a configuration, not a guaranteed working fill. External height, base thickness, tolerances and any unspecified dimensions are agreed on the final drawing.
Process review
Share the charge composition, atmosphere, temperature definition, hold time, thermal cycles and contamination limits. No universal melt compatibility or continuous-use temperature is implied.
Explore the crucibles catalog and manufacturing route guide. Use this product's quotation form to retain the selected material with your requirements.
Request a product-specific SDS
Please request the SDS for your specific material and configuration.
Tell us what you need
Niobium Crucible is included automatically. Tell us the form, size and quantity you need; other details are optional.
