Choosing a refractory metal crucible is not simply a contest between melting points. The useful purchasing question is: which material and vessel design can meet the requirements of this charge, atmosphere, thermal cycle and contamination budget?
Molybdenum, tantalum and niobium are distinct materials, not interchangeable names for a high-temperature cup. This guide helps you prepare a comparable RFQ. It does not provide a universal safe operating temperature or certify compatibility with an unspecified melt.
For fabrication routes, see our existing refractory metal crucible manufacturing guide. This article focuses on selecting and specifying the vessel rather than repeating how it is manufactured.

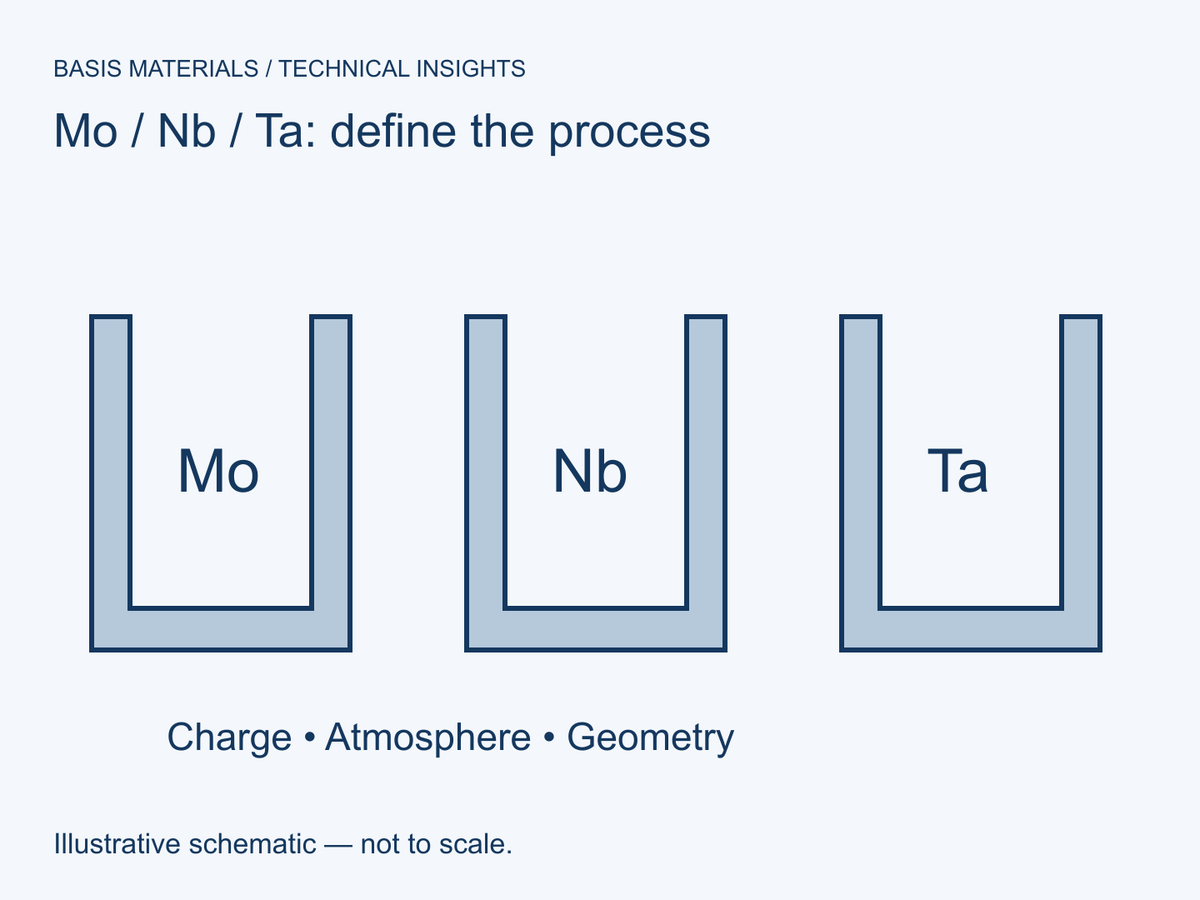

A practical comparison—not a compatibility chart
| Candidate | Useful starting context | Purchasing question to resolve |
|---|---|---|
| Molybdenum (Mo) | High melting point and established use in high-temperature components; chemical reactivity depends on the environment | What evidence supports this grade, charge, atmosphere and thermal cycle? |
| Tantalum (Ta) | A dense, ductile metal noted for resistance to many acidic environments | Does the evidence apply to the actual hot charge, rather than an unrelated corrosion environment? |
| Niobium (Nb) | A ductile, high-melting metal with substantially lower density than tantalum | Is the requirement for pure niobium or a specified niobium alloy, and what evidence supports the proposed service? |
These are general material characteristics. Element references and USGS descriptions support the distinctions, but they are not ratings for finished Basis Materials crucibles. 1 2 3
For an existing qualified process, start with the approved drawing and material designation. For a new process, ask for a technical review of candidate materials instead of choosing solely from this table.
1. Specify the charge before selecting the cup
List the material to be melted, evaporated or heat-treated, including alloying additions, binders, fluxes and other substances that can contact the vessel. State whether the charge is solid throughout the cycle or becomes a liquid.
Set a contamination requirement in terms useful to your experiment. “High purity” may not explain whether traces of Mo, Ta or Nb are acceptable in the final material. Identify any particularly restricted elements and the evidence needed to evaluate transfer from the vessel.
Molybdenum technical data illustrate why a material name is insufficient: reactivity differs among gases, molten metals and other contacting substances. 4 Use such references to frame questions; do not convert a general table entry into an unconditional guarantee for your process.
2. Describe the atmosphere and the complete thermal cycle
Write down the intended temperature profile, dwell time, cycle count, heating method and pressure or gas environment. Identify how temperature is measured. Include loading and unloading conditions, not only the period at the peak temperature.
“Vacuum” needs a pressure specification and relevant process context. “Inert gas” needs the gas identity and any purity or residual-gas requirements that matter to the application. A furnace's maximum temperature is not a qualification of every vessel placed inside it.
Molybdenum's elevated-temperature response in air differs from its behavior in protected environments. Tantalum's corrosion resistance also depends on the contacting chemistry. 4 The practical consequence is to request an agreed service envelope, not to invent one from a melting-point table.
3. Keep pure metal, alloy and material condition separate
“Niobium crucible” and “niobium-alloy crucible” should not silently become the same line item. Specify the alloy designation and composition basis when an alloy is required. Where pure metal is required, identify the requested purity basis and relevant impurity limits.
Ask the supplier to state the proposed material condition and fabrication route when these affect your requirements. Record whether joints are permitted and where they may be located. Instead of demanding a process label without explanation, identify the feature you need controlled: for example, a minimum wall thickness at a defined location or an inspection requirement for a joint.
The quotation should distinguish requested requirements from confirmed supply specifications. A product-family page or a representative photograph is not a drawing revision, batch analysis or operating approval.
4. Specify usable internal dimensions—not capacity alone
A capacity label does not define how a crucible fits the equipment. Include internal diameter or profile, internal depth, outside envelope, base geometry, rim features and any lid or locating requirements. Mark the reference surfaces on the drawing.
For a simple straight cylindrical cavity, geometric volume is:
V = π × (internal diameter / 2)² × internal depth.
With dimensions in millimeters, divide the result in mm³ by 1,000 to obtain mL. An ideal 40 mm internal diameter and 50 mm internal depth gives approximately 62.83 mL. This is an illustrative geometry calculation, not a catalog size or recommended charge volume.
For your inside-dimension example, use the Crucible Capacity & Dimension Calculator to estimate geometric capacity and user-defined freeboard. This is not a safe-fill limit.
External height is not internal depth. A thick base, rounded internal corner, taper or internal feature changes the cavity. Likewise, geometric brimful capacity does not specify a safe fill level, molten-charge mass or allowable pressure.
For a tapered cavity, request both internal diameters and the internal height, or supply the complete profile. Keep a drawing as the controlling requirement rather than expecting an approximate volume calculator to capture every radius and detail.
5. Compare the complete supply scope
Compare quotes against the same revision and quantity. Clarify whether each quote includes a lid, separate support, surface preparation, dimensional report, material documentation, protective packaging or any other requested item.
Do not assume that a lower-density material will produce a cheaper finished crucible. Material amount is only one input to a quote; geometry, fabrication, inspection and quantity also need to be specified. Nor should a higher melting point automatically justify substituting one candidate for another.
When replacing a vessel, preserve the known drawing and service history. A visually similar cup can still differ in its inner profile, wall distribution, locating features or material designation. Ask the supplier to identify proposed deviations explicitly rather than hiding them inside “equivalent.”
6. Example: turn an incomplete inquiry into a useful RFQ
Incomplete: “Please quote a 50 mL niobium crucible for high-temperature use.”
More useful request:
Please review a niobium crucible for the process described below. The requested cavity capacity is approximately 50 mL, but the attached drawing defines the required fit and internal profile. Confirm the proposed grade and purity basis, minimum finished wall and base dimensions, permitted fabrication route, inspection scope and any unresolved service limitations. Do not substitute a niobium alloy without identifying the alloy and obtaining agreement.
Then provide the charge, atmosphere, thermal cycle, contamination constraints, quantity and drawing. The example intentionally leaves application-dependent limits to the buyer and engineering review; it is not a recommended operating recipe.
For an early feasibility request without a drawing, distinguish firm constraints from preferences. For instance, the outside diameter may be fixed by a holder while the internal depth is still negotiable. That distinction helps a supplier propose a workable configuration without guessing which dimension matters most.
7. Copy-ready crucible purchasing brief
Requested material: Mo, Ta, Nb or a named alloy; alternatives only with explicit review.
Charge: Composition, physical state, additives and substances contacting the vessel.
Environment: Gas or vacuum specification, relevant residual-gas requirements, and loading/unloading conditions.
Thermal cycle: Intended temperature profile, dwell time, number of cycles, heating method and measurement location.
Geometry: Drawing revision, internal profile, external envelope, wall/base requirements, rim, lid and mounting interfaces.
Contamination: Restricted elements, purity basis and required documentation.
Inspection: Dimensional features and any agreed material or joint checks.
Supply: Quantity, packaging, requested timing and whether this replaces a qualified existing part.
Frequently asked questions
Is tantalum always better than molybdenum or niobium?
No universal ranking follows from the elemental properties. Evaluate the specified charge and operating requirements; the comparison table is a starting point for that review, not an approval matrix.
Can I replace pure niobium with a niobium alloy?
Treat that as a material change requiring explicit agreement. State the exact alloy rather than allowing the word “niobium” to hide a different composition.
Does a 50 mL capacity tell me the outside dimensions?
No. Different internal profiles, wall thicknesses and base geometries can produce the same capacity. Provide the dimensional constraints separately.
Can the material melting point serve as the maximum operating temperature?
No. A material property does not establish the finished vessel's agreed service envelope. The environment and contacting chemistry still need to be evaluated. 4
