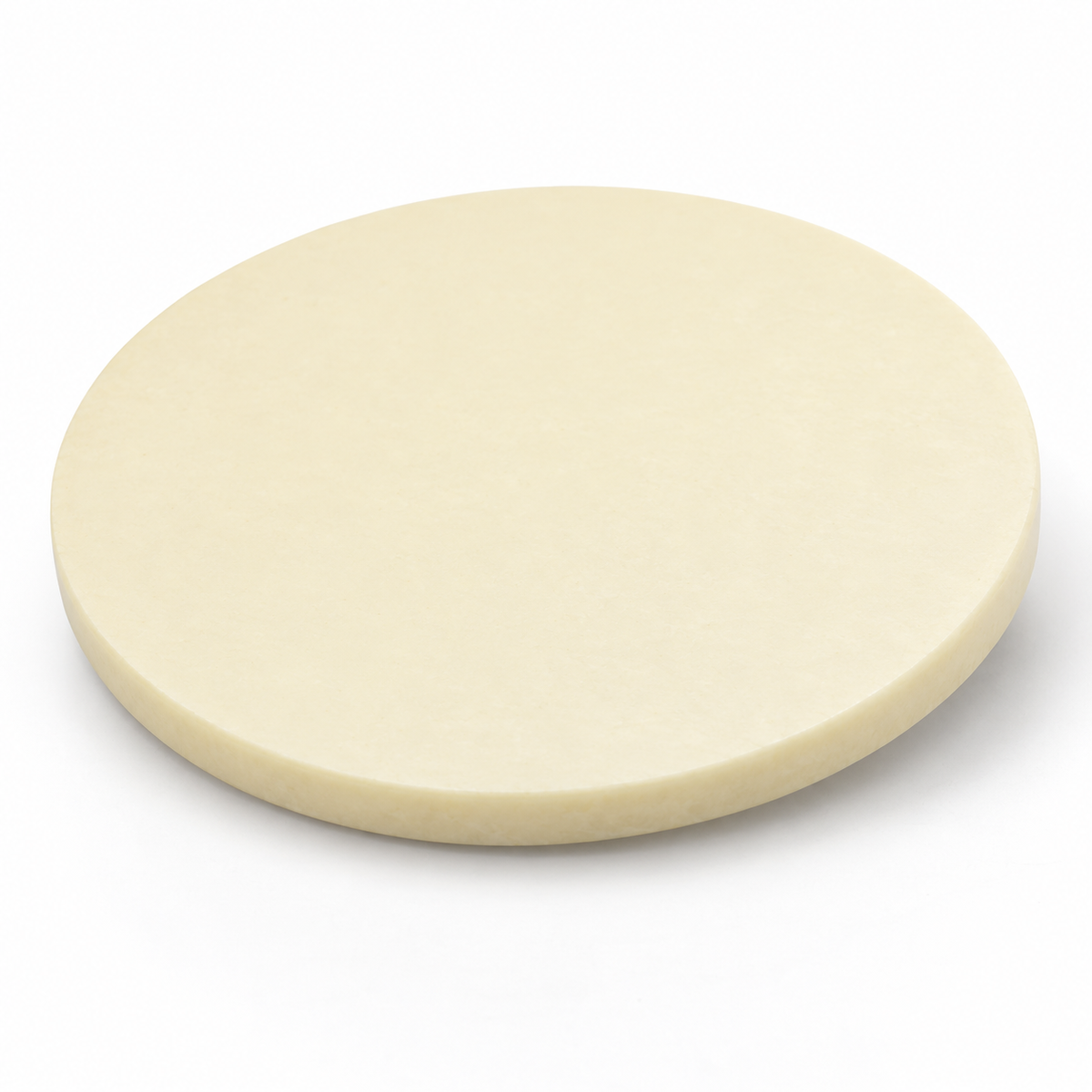

Basis Materials representative image of Zinc Oxide (ZnO) Sputtering Target

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Zinc Oxide (ZnO) Sputtering Target

Grade / formula: ZnO

Made to Order

Request a quote

Overview

Zinc Oxide (ZnO) Sputtering Target is offered for semiconductor thin-film research. Specify the target configuration and dimensions required by your deposition system.

Technical Specifications

Material Zinc Oxide (ZnO)
Formula / designation ZnO
Form Sputtering Target
CAS number 1314-13-2
Purity options
  • 99.9%
  • 99.99%
  • 99.999%
  • ≥99%
Deposition method (reference) RF-R
Bonding options
  • Indium
  • Indium, Elastomer
Size options
  • 50.8 mm Dia. x 3.175 mm Thick
  • 25.4 mm Dia. x 3.175 mm Thick
  • 25.4 mm Dia. x 6.35 mm Thick
  • 50.8 mm Dia. x 6.35 mm Thick
View all 20 options
  • 76.2 mm Dia. x 3.175 mm Thick
  • 76.2 mm Dia. x 6.35 mm Thick
  • 101.6 mm Dia. x 3.175 mm Thick
  • 101.6 mm Dia. x 6.35 mm Thick
  • 127 mm Dia. x 3.175 mm Thick
  • 127 mm Dia. x 6.35 mm Thick
  • 152.4 mm Dia. x 3.175 mm Thick
  • 152.4 mm Dia. x 6.35 mm Thick
  • 177.8 mm Dia. x 3.175 mm Thick
  • 177.8 mm Dia. x 6.35 mm Thick
  • 203.2 mm Dia. x 3.175 mm Thick
  • 203.2 mm Dia. x 6.35 mm Thick
  • 25.4 mm Dia x 3.175 mm Thick
  • 50.8 mm Dia x 3.175 mm Thick
  • 76.2 mm Dia x 3.175 mm Thick
  • 101.6 mm Dia x 3.175 mm Thick
Shape options Discs
Diameter 50.8 mm, 76.2 mm, 101.6 mm, 127 mm, 152.4 mm
Thickness 6.35 mm, 3.175 mm
Molar mass (formula reference) 81.379 g/mol
Density (reference) 5.61 g/cm³
Melting point (reference) 1,975 °C

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Applications

  • Semiconductor thin-film research
  • Display thin-film research
  • Photovoltaic thin films
  • Transparent conductive coatings

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.
