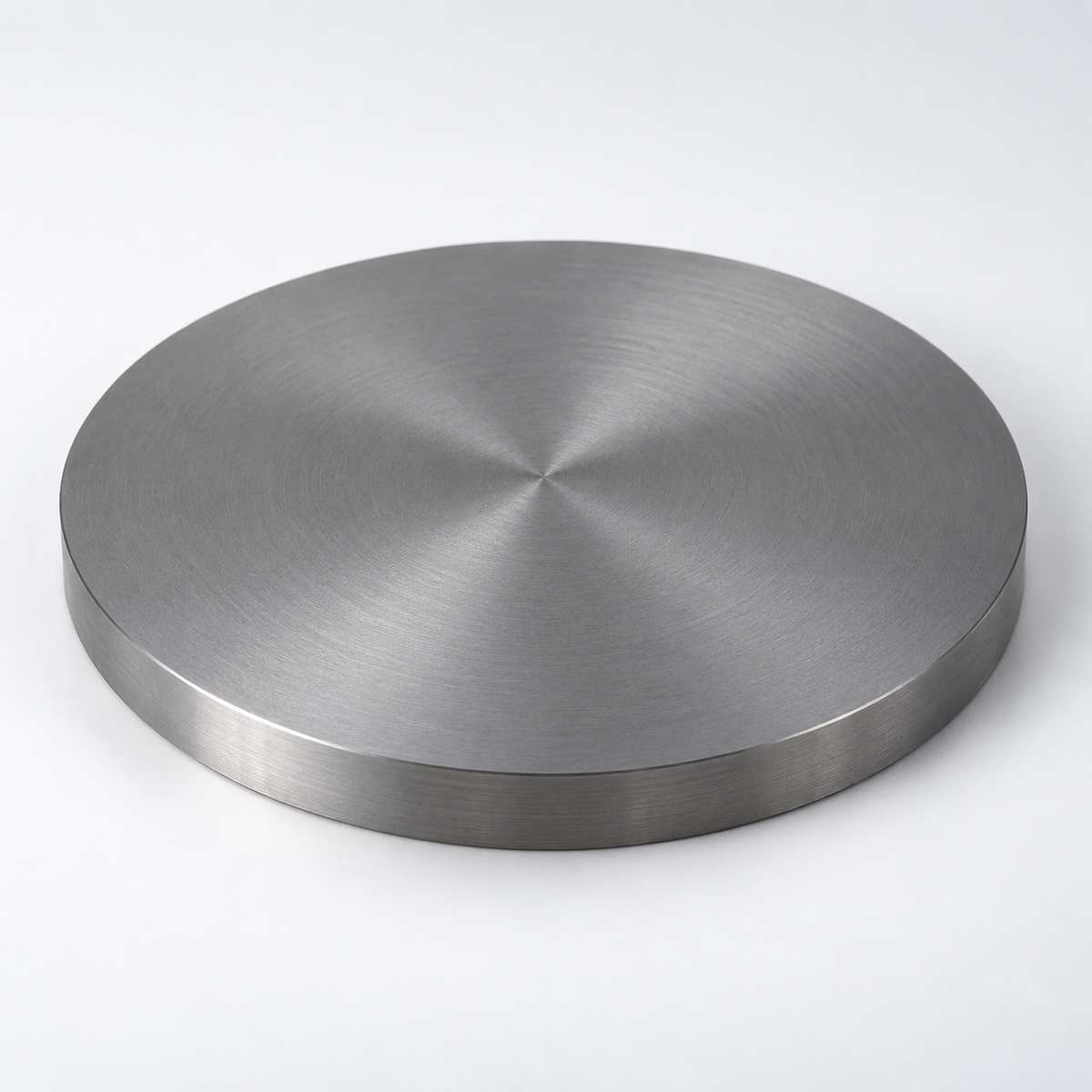

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.
BASIS MATERIALS / TARGET
Planar Molybdenum (Mo) Sputtering Target
Grade / formula: Mo
Made to Order
Request a quoteOverview
Technical Specifications
| Material | Planar Molybdenum (Mo) |
|---|---|
| Chemical symbol | Mo |
| Form | Sputtering Target |
| Target configuration | Planar |
| Deposition method (reference) | DC |
| Bonding options | |
| Shape options | |
| Purity and size configurations | 99.95%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 57 mm Dia. x 0.25 mm Thick; 152.4 mm Dia. x 3.175 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 3.175 mm Thick; 203.2 mm Dia. x 6.35 mm Thick |
| Diameter options represented above | 25.4, 50.8, 76.2, 101.6, 57, 152.4, 203.2 mm |
| Thickness options represented above | 3.175, 6.35, 0.25 mm |
| Standard atomic weight (reference) | 95.95 ± 0.01 |
| Density (reference) | 10.2 g/cm³ |
| Melting point (reference) | 2622 °C |
| Thermal conductivity (reference) | 139 W/m.K |
Final specifications, available configurations, pricing, and lead time are confirmed during quotation.
Customization & RFQ
Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.
Request a product-specific SDS
Please request the SDS for your specific material and configuration.
REQUEST A QUOTE
Tell us what you need
Planar Molybdenum (Mo) Sputtering Target is included automatically. Tell us the form, size and quantity you need; other details are optional.
