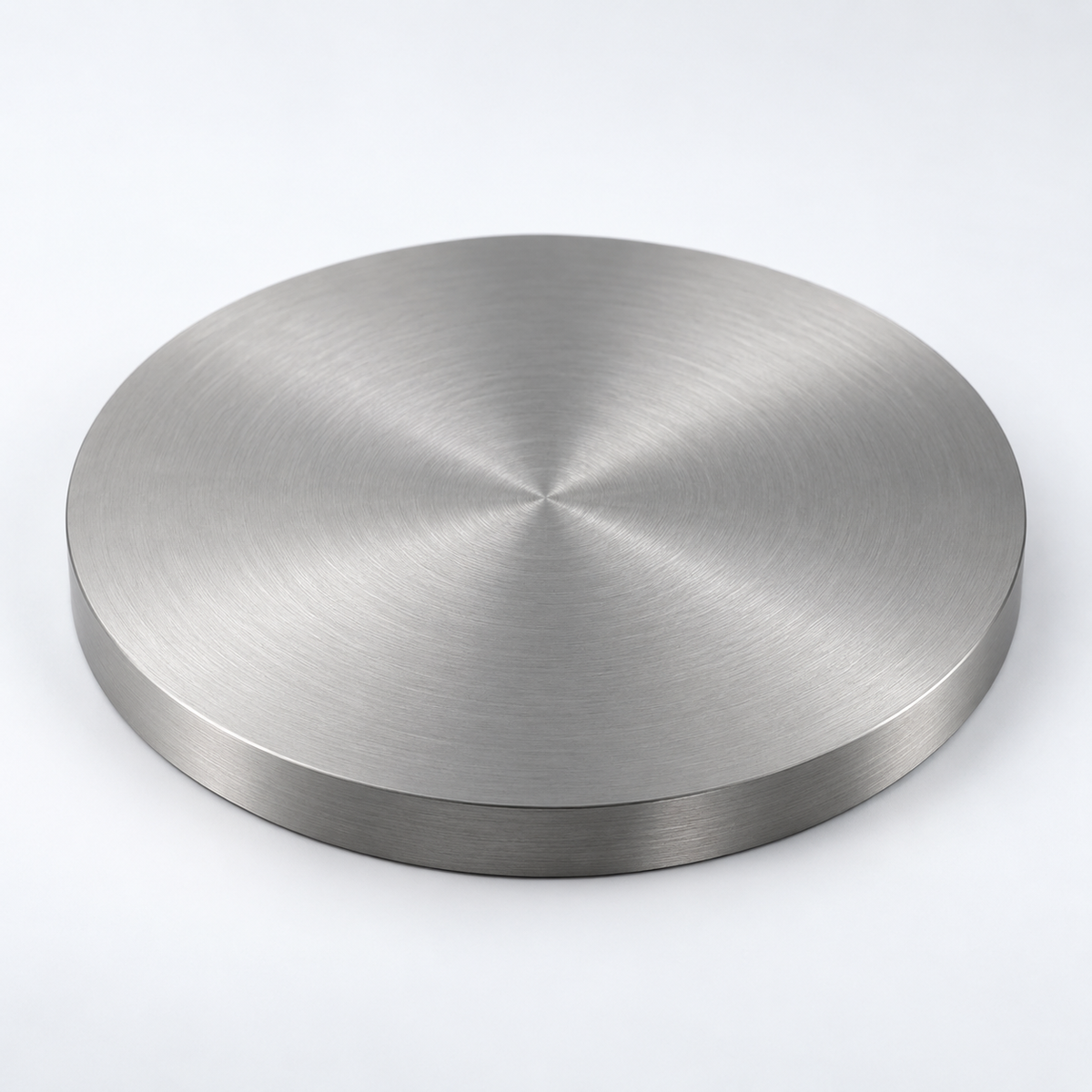

Representative image of Titanium (Ti) Sputtering Target

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Titanium (Ti) Sputtering Target

Grade / formula: Ti

Made to Order

Request a quote

Overview

Titanium is a lightweight metal known for corrosion resistance. Titanium (Ti) Sputtering Target is offered for semiconductor thin-film research. Specify the target configuration and dimensions required by your deposition system.

Technical Specifications

Technical specifications
Material Titanium (Ti)
Chemical symbol Ti
Form Sputtering Target
Deposition method (reference) DC
Bonding options
  • Indium
  • Elastomer
CAS number 7440-32-6
Shape options Discs
Purity and size configurations
  • 99.2%-99.7%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
  • 99.97%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 57 mm Dia. x 3.175 mm Thick; 57 mm Dia. x 0.3 mm Thick; 57 mm Dia. x 3 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
  • 99.995%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 127 mm Dia. x 6.35 mm Thick; 57 mm Dia. x 0.2 mm Thick; 57 mm Dia. x 0.3 mm Thick; 57 mm Dia. x 0.5 mm Thick; 152.4 mm Dia. x 3.175 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 3.175 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
  • 99.99%: 101.6 mm Dia. x 6.35 mm Thick; 57 mm Dia. x 0.1 mm Thick
View all 5 options
  • 99.9%: 57 mm Dia. x 2 mm Thick
Diameter options represented above 25.4, 50.8, 76.2, 101.6, 127, 57, 152.4, 203.2 mm
Thickness options represented above 3.175, 6.35, 0.1, 0.2, 0.3, 0.5, 2, 3 mm
Standard atomic weight (reference) 47.867 ± 0.001
Density (reference) 4.506 g/cm³
Melting point (reference) 1670 °C
Thermal conductivity (reference) 21.9 W/m.K

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Applications

  • Semiconductor thin-film research
  • Optical coatings

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.
