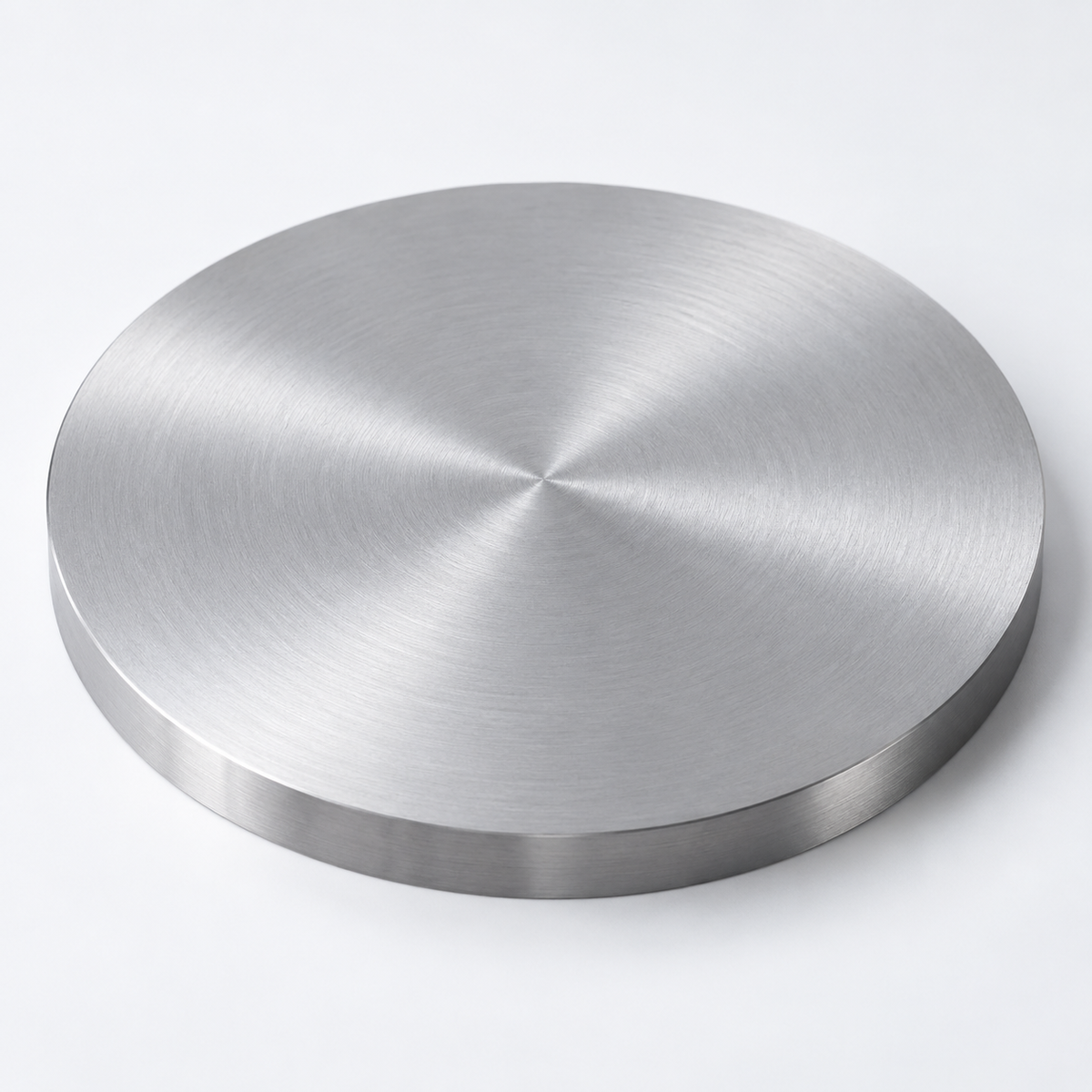

Representative image of Aluminum (Al) Sputtering Target

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Aluminum (Al) Sputtering Target

Grade / formula: Al

Request a quote

Overview

Aluminum is a lightweight, electrically conductive metal. Aluminum (Al) Sputtering Target is offered for semiconductor thin-film research. Specify the target configuration and dimensions required by your deposition system.

In-stock 4N aluminum sputtering target

99.99% (4N) aluminum, 50.8 mm diameter × 3.175 mm thick (2 in × 0.125 in), supplied without a backing plate. Country of origin: China.

Request a quote for this configuration and the quantity you need. Other configurations are made to order.

Technical Specifications

Technical specifications
Material Aluminum (Al)
Chemical symbol Al
Form Sputtering Target
Deposition method (reference) DC
Bonding options
  • Indium
  • Elastomer
CAS number 7429-90-5
Shape options Discs
Purity and size configurations
  • 99.99%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 1.5875 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 1.5875 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 57 mm Dia. x 0.1 mm Thick; 57 mm Dia. x 1 mm Thick; 57 mm Dia. x 3 mm Thick; 152.4 mm Dia. x 3.175 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 3.175 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
  • 99.999%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 9.525 mm Thick; 57 mm Dia. x 1 mm Thick; 57 mm Dia. x 3 mm Thick; 152.4 mm Dia. x 3.175 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 3.175 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
Diameter options represented above 25.4, 50.8, 76.2, 101.6, 57, 152.4, 203.2 mm
Thickness options represented above 3.175, 6.35, 1.5875, 9.525, 0.1, 1, 3 mm
Standard atomic weight (reference) 26.982 ± 0.001
Density (reference) 2.70 g/cm³
Melting point (reference) 660.323 °C
Thermal conductivity (reference) 235 W/m.K

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Applications

  • Semiconductor thin-film research
  • Display thin-film research
  • Photovoltaic thin films

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.

Request a Quote

Request a product-specific SDS

Please request the SDS for your specific material and configuration.

Request SDS
