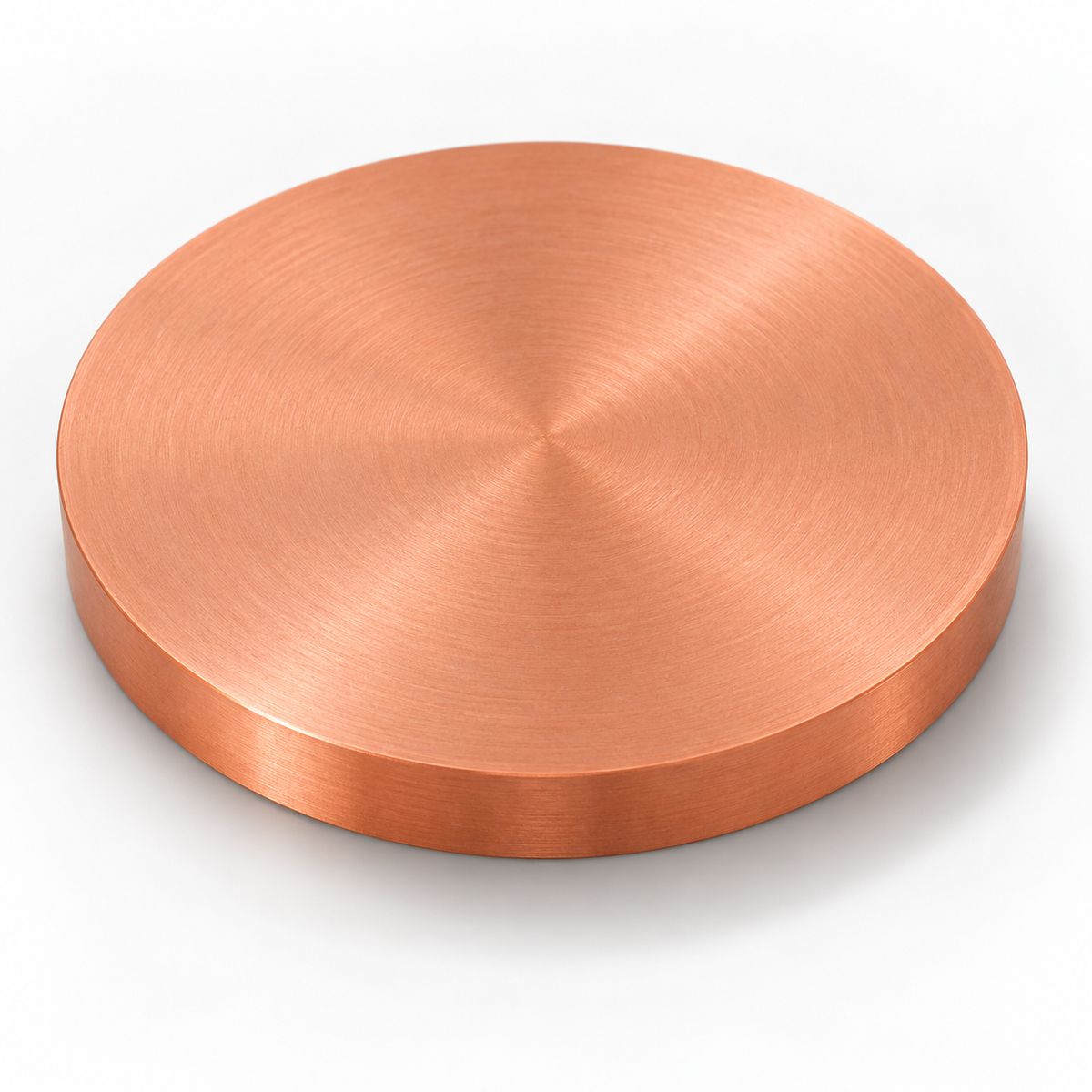

Basis Materials representative image of Copper (Cu) Sputtering Target

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Copper (Cu) Sputtering Target

Grade / formula: Cu

Made to Order

Request a quote

Overview

Copper is valued for its electrical and thermal conductivity. Copper (Cu) Sputtering Target is offered for semiconductor thin-film research. Specify the target configuration and dimensions required by your deposition system.

Technical Specifications

Technical specifications
Material Copper (Cu)
Chemical symbol Cu
Form Sputtering Target
Deposition method (reference) DC
Bonding options
  • Indium
  • Elastomer
CAS number 7440-50-8
Shape options Discs
Purity and size configurations
  • 99.99%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 127 mm Dia. x 6.35 mm Thick; 54 mm Dia. x 0.5 mm Thick; 54 mm Dia. x 1 mm Thick; 57 mm Dia. x 0.2 mm Thick; 57 mm Dia. x 0.3 mm Thick; 57 mm Dia. x 0.5 mm Thick; 57 mm Dia. x 1 mm Thick; 57 mm Dia. x 2 mm Thick; 57 mm Dia. x 3 mm Thick; 152.4 mm Dia. x 3.175 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 60 mm Dia. x 2 mm Thick; 60 mm Dia. x 3 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
  • 99.999%: 25.4 mm Dia. x 3.175 mm Thick; 25.4 mm Dia. x 6.35 mm Thick; 50.8 mm Dia. x 3.175 mm Thick; 50.8 mm Dia. x 6.35 mm Thick; 76.2 mm Dia. x 3.175 mm Thick; 76.2 mm Dia. x 6.35 mm Thick; 101.6 mm Dia. x 3.175 mm Thick; 101.6 mm Dia. x 6.35 mm Thick; 57 mm Dia. x 0.1 mm Thick; 57 mm Dia. x 0.2 mm Thick; 57 mm Dia. x 0.3 mm Thick; 57 mm Dia. x 0.5 mm Thick; 152.4 mm Dia. x 3.175 mm Thick; 152.4 mm Dia. x 6.35 mm Thick; 203.2 mm Dia. x 3.175 mm Thick; 203.2 mm Dia. x 6.35 mm Thick
  • 99.995%: 152.4 mm Dia. x 1.5875 mm Thick
Diameter options represented above 25.4, 50.8, 76.2, 101.6, 127, 54, 57, 152.4, 60, 203.2 mm
Thickness options represented above 3.175, 6.35, 0.5, 1, 0.1, 0.2, 0.3, 2, 3, 1.5875 mm
Standard atomic weight (reference) 63.546 ± 0.003
Density (reference) 8.96 g/cm³
Melting point (reference) 1084.62 °C
Thermal conductivity (reference) 400 W/m.K

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Applications

  • Semiconductor thin-film research
  • Display thin-film research

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.

Request a Quote

Request a product-specific SDS

Please request the SDS for your specific material and configuration.

Request SDS
REQUEST A QUOTE

Tell us what you need

Copper (Cu) Sputtering Target is included automatically. Tell us the form, size and quantity you need; other details are optional.

For made-to-drawing assemblies, include the drawing number and revision in your notes and email the drawing to sales@basismaterials.com. Assembly suitability and the bonding method are reviewed for your material and equipment.
