Sputtering Target Bonding: Indium vs. Elastomer vs. Diffusion Bonding

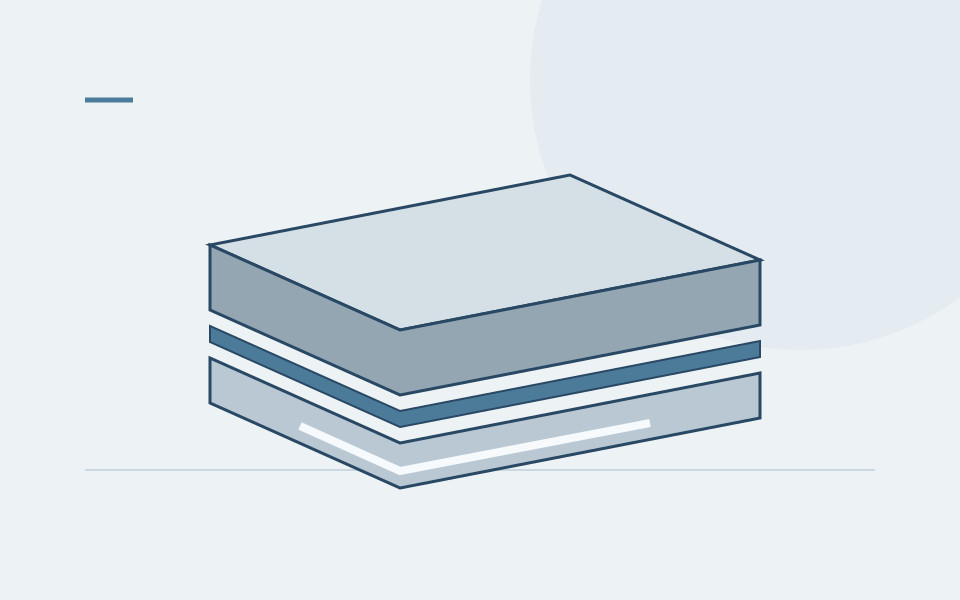

Exploded target, bond layer and cooled backing plate cross-section

A sputtering target can have the right chemistry and microstructure yet perform poorly if its assembly does not remove heat effectively. The bond, backing plate, cathode contact, and cooling system form a thermal and mechanical path. Selecting indium, elastomer, or diffusion bonding therefore requires more than comparing the target material's melting point.

This guide explains what the three methods change at the interface, which operating conditions matter, and what to specify for a bonded assembly. It does not assign universal power-density limits or claim that Basis Materials operates a particular bonding machine. The appropriate method must be reviewed for the actual target, backing plate, geometry, and service conditions.

Why bond a target to a backing plate?

A backing plate can provide mechanical support, mounting features, and a path toward the cooled cathode. Bonding creates an interface between the target and plate that can improve thermal contact compared with an uncontrolled gap. It may also help retain a fragile target as an assembly, but it does not eliminate thermal stress or make every cracked target acceptable for continued operation.

The plate material matters because thermal conductivity, expansion, stiffness, and compatibility differ between materials. A plate drawing should define mounting and cooling interfaces, not just outside dimensions. A recycled plate also requires assessment of its remaining thickness, flatness, surface condition, and any features affected by previous service or rework.

The Society of Vacuum Coaters describes several target-bonding approaches and relates method selection to target material, plate material, and intended bondline temperature. That framework is more useful than labeling one method best for all sputtering targets. [1]

Follow the heat from the erosion region to the coolant

Heat generated during sputtering travels through the target, across the bonded interface, through the backing plate and cathode contact, and into the cooling system. Each region can contribute resistance. A conductive bond cannot compensate for inadequate coolant flow, poor plate-to-cathode contact, or an incompatible target thickness.

For an ideal uniform layer, conductive resistance scales with thickness divided by thermal conductivity and area. Real assemblies add contact effects, nonuniform heating, and local defects. The simple relationship is useful for asking questions about bond thickness and material, not for calculating a safe operating power without a complete thermal model or qualification.

The temperature measured at the coolant outlet or on an accessible plate surface is not necessarily the hottest bondline temperature. The erosion track and local cooling arrangement can create spatially uneven loading. Specify where temperature is measured and how the assembly's operating limit was established.

Qualitative heat-flow path through target, bond, backing plate and cathode to coolant, including a conceptual void.
Figure 1. Conceptual heat path through a bonded target assembly. Arrows are qualitative and do not represent a simulated temperature field. Illustrative schematic — not to scale.

Indium bonding: a compliant metallic interface

Indium bonding uses a metallic solder interface between appropriately prepared surfaces. Its compliance can help accommodate some differential expansion between the target and plate. Wetting, surface preparation, bond thickness, coverage, and cleanliness influence the actual assembly; the word “indium” alone does not establish those properties.

Pure indium melts at approximately 156.6°C. This is a material property, not a safe continuous operating limit for every bonded target. A qualified assembly may require a lower maximum bondline temperature and operating margin. Alloyed solders and specific bonding constructions must be evaluated on their own data rather than assigned the pure-metal value. [2]

Ask whether metallization or other surface preparation is needed for the target and whether those layers are compatible with the application. An oxide ceramic and a metallic target may present different preparation requirements. The bond should not introduce an unreviewed contamination source near the useful erosion region.

Indium can be a candidate when the assembly is compatible with its thermal envelope and a compliant metallic interface is useful. Re-bonding may be possible after controlled separation and plate preparation, but recoverability depends on the target, plate, remaining dimensions, and the qualified procedure. It is not a promise that every used target can be restored.

Elastomer bonding: evaluate the actual formulation

Elastomer bonding uses a polymer-based interface formulated for the intended assembly. Its flexibility can help accommodate differences in expansion or fragile target behavior. Fillers, curing conditions, thickness, adhesion, and temperature dependence influence its thermal and mechanical performance. “Elastomer” is a category, not one standardized material property set.

Lesker's elastomer-bonding documentation describes a particular service with a different temperature capability from its indium service. That is evidence that formulation-specific alternatives exist; it is not a universal rating for all elastomer bonds or a Basis Materials operating specification. [3]

Ask for the qualified temperature envelope, vacuum suitability, electrical behavior where relevant, and any restrictions on cleaning or storage. Do not assume that flexibility implies high thermal conductivity, or that a higher allowable interface temperature permits higher power in every cathode. The full thermal path still controls the resulting temperature.

For a brittle ceramic or temperature-sensitive target, review the preparation and cure cycle as well as service. Differential expansion, local defects, and target strength remain relevant after bonding. If the process requires rebonding, establish how the old material will be removed and how the plate's dimensions and surface will be inspected afterward.

Diffusion bonding: a metallurgical joint with process constraints

Diffusion bonding forms a solid-state joint through suitable surface contact and a controlled combination of temperature, pressure, and time. An interlayer may be used, depending on the material pair and process. The method is distinct from simply melting an indium solder between two parts.

The target and plate must tolerate the bonding cycle. Grain growth, phase changes, distortion, interfacial reactions, and differential contraction during cooling may affect the final assembly. A joint that is strong at the interface can still leave unacceptable target microstructure or plate flatness if the route is poorly matched.

A sputter-target/backing-plate patent describes a particular low-temperature solid-diffusion approach designed to address such tradeoffs. It demonstrates a disclosed process concept, not independent proof that all diffusion bonds operate at higher power or outperform every compliant bond. [4]

Diffusion bonding can be considered for compatible material systems where a metallurgical interface and the qualified thermal envelope are useful. It should not be assumed suitable for arbitrary ceramic–metal combinations or automatically easy to separate for maintenance. Review the complete manufacturing and service sequence, including the consequences of replacing the target.

Cross-sections of indium solder, elastomer and diffusion-bonded targets; layer thicknesses are exaggerated.
Figure 2. Conceptual interface types. Layer thicknesses are exaggerated; diffusion bonding may include a designed interlayer. Illustrative schematic — not to scale.

Interface voids: coverage is necessary information, not the whole answer

A void interrupts the intended contact path and can change local heat flow or stress. The consequence depends on its position, size, shape, and relationship to the erosion region. The same overall coverage percentage can conceal different defect distributions. A large localized defect should not be treated as equivalent to many small, differently located indications.

Discuss the inspection method and reporting convention. Ultrasonic inspection, radiography, or other techniques may be applicable depending on materials and geometry; no single method detects every defect equally well. Define what an indication means, the method's limitations, and whether a map or a single coverage value is required.

Inspect the finished assembly rather than only an intermediate interface. Bond thickness, plate flatness, target position, edge condition, and mounting compatibility all matter. A favorable bond map does not by itself demonstrate that the cathode installation will provide adequate cooling.

Compare qualified assembly behavior, not process labels
Method Potential reason to consider it Important constraints Inspection questions
Indium Compliant metallic interface and appropriate heat transfer Bondline temperature, wetting and preparation Coverage map, thickness, contamination and flatness
Elastomer Formulation-specific flexibility and compatibility Qualified thermal properties, vacuum behavior and cure Adhesion, voids, thickness and service documentation
Diffusion Compatible metallurgical interface Bonding cycle, reactions, target structure and distortion Interface integrity, dimensions and final material condition

Ceramic and metallic targets need different reviews

Ceramic targets can be sensitive to thermal gradients and mechanical loading. Supporting and cooling them does not remove their fracture behavior. Review target thickness, edge geometry, preparation, power ramping, and the cathode's mechanical contact. Continued use after cracking requires the supplier's and equipment manufacturer's guidance; bonding alone is not permission to continue.

For metallic targets, conductivity does not make bonding trivial. The target and plate may expand differently, and the bonding cycle can alter the target's grains or phases. Large diameter, thick sections, rotary geometry, or a concentrated erosion track can require a different engineering review from a small planar research target.

Browse sputtering targets, including copper and ITO targets, while treating their assembly requirements separately from bulk material selection. The existing target manufacturing and microstructure guide explains the complementary bulk-material questions.

Choose from operating conditions outward

Bonding selection checklist for material compatibility, thermal envelope, inspection and maintenance.
Figure 3. Assembly-selection checklist. All candidate methods require material-pair and operating-condition qualification. Illustrative schematic — not to scale.

Begin with the target material, useful geometry, and intended deposition conditions. Identify power mode, reactive gases, conditioning, cooling arrangement, and any known temperature measurements. Then review the backing plate and the interface options against those conditions. A change in cathode or target thickness may require review even if the bond material remains unchanged.

If an indium bond has melted, determine why the bondline overheated before changing methods. Cooling problems, contact problems, voids, geometry, or operation outside the qualified envelope may remain relevant with another bond. A higher-temperature interface can hide an unresolved thermal-path problem rather than solve it.

Maintenance requirements belong in the initial selection. Decide whether plate reuse is important, which inspections precede reuse, and how the assembly is handled and stored. Separation, cleaning, re-machining, and re-bonding each affect dimensions and surface condition. Reuse should be a controlled route with acceptance criteria.

How to Specify a Bonded Sputtering Target: Target vs. Backing-Plate Dimensions

A request for a “two-inch bonded target” leaves an important question unanswered: which part is two inches? The sputtering target, the backing plate, and the finished assembly need their own dimensions. A quote becomes easier to compare when each is identified separately.

Use the following checklist alongside your cathode drawing. It is a purchasing aid, not an equipment-compatibility approval.

Identify the three parts of the stack

Item Information to specify What not to assume
Sputtering target Material or alloy designation; requested purity or composition; diameter or length and width; target-only thickness; edge features A nominal target size does not define the backing plate or the assembled thickness
Bond interface Proposed method; any prohibited interlayers; bondline thickness to be agreed; inspection and documentation requirements A bonding-method name alone does not define a qualified operating envelope
Backing plate Material; outside dimensions; thickness; recesses, mounting holes, threads and cooling-interface features; drawing revision A plate of the correct diameter is not necessarily compatible with the cathode
Finished assembly Overall thickness; target position; alignment; flatness requirements; mounting clearances Adding two nominal stock thicknesses can overlook the interface and any recessed geometry

Equipment thickness allowance is a real constraint in bonded assemblies. Lesker's bonding documentation describes how a backing plate occupies part of the space otherwise available for the target. Use the drawing for your actual cathode rather than treating one supplier's typical configuration as a universal standard. 1

A dimension example—not a recommended assembly

Illustrative RFQ example only. These values are not a Basis Materials stock configuration, manufacturing tolerance, or promise of equipment fit.

Dimension Example input
Copper target diameter 50.8 mm
Target-only thickness 3.00 mm
Backing-plate outside diameter 54.0 mm
Backing-plate thickness 3.00 mm
Assumed interface thickness for this arithmetic example 0.10 mm
Calculated flat-stack thickness 6.10 mm

For this simplified, unrecessed stack, assembled thickness is 3.00 + 0.10 + 3.00 = 6.10 mm. A recessed plate, lip, step, or different drawing datum changes the calculation. The example does not establish that a cathode accepting a 50.8 mm target can accept a 54.0 mm plate or a 6.10 mm assembly.

Send an assembly drawing that defines the reference surfaces and required clearances. State dimensions in one unit system and show any converted values as secondary references.

State what is being supplied and what is being reused

Select the intended scope: a new target and new plate; a new target bonded to a customer-supplied plate; bonding of customer-supplied components; or evaluation of an existing assembly for debonding and rebonding.

For reused components, include the drawing revision, previous target material, earlier bonding method if known, and photographs of the interface and mounting features. Ask the supplier to confirm inspection requirements before treating reuse as approved. A photograph is useful context, not a substitute for a dimensional drawing.

Keep process requirements separate from geometry

Provide the power mode, intended power, cooling arrangement, process gases, and any known temperature limit, including where that temperature is measured. Do not enter a coolant reading as a measured bondline temperature without justification.

Pure indium melts at approximately 156.6°C. That value is not a universal safe continuous operating temperature for a bonded target. An inquiry mentioning “high-temperature indium bonding” should describe the actual thermal requirement, not assume that the phrase identifies an available high-temperature product. Lesker's published limits describe its own service; the Basis quotation must identify the agreed assembly and operating conditions. 1

Rotary targets require their own tube, end-fitting, cooling, and mounting information. Do not apply this planar stack example to a rotary assembly.

Copy-ready bonding inquiry

Supply scope: New target and plate / customer-supplied plate / customer-supplied components / rebonding evaluation.
Target: Material, composition basis where relevant, requested purity, target-only dimensions and drawing revision.
Backing plate: Material, dimensions, mounting and cooling-interface drawing, new or previously used.
Finished assembly: Overall envelope, reference surfaces, alignment and flatness requirements.
Process: Cathode model, power mode, intended power, cooling, gases and known temperature measurements.
Restrictions: Prohibited bonding materials, interlayers, cleaning processes or contaminants.
Inspection: Requested dimensional checks, bond assessment and documentation.
Quantity: Number of complete assemblies and any spare components.

Need a bonded assembly? Request a bonding quote with your target and backing-plate requirements. Browse sputtering targets to identify the material separately from the assembly configuration.

Reference for this purchasing example

1. Kurt J. Lesker Company, Indium Target Bonding Service. Technical context for assembly thickness and indium bonding; no supplier-specific ratings or dimensions are adopted as Basis specifications.

Frequently asked questions

Can coolant temperature be used as bond temperature?

Not directly. Temperature differences exist along the thermal path, and local bondline hot spots may not be visible in a coolant reading.

Is diffusion bonding always the highest-performance choice?

No. Material compatibility, bonding-cycle effects, geometry, and service conditions determine suitability. A metallurgical interface is not a universal performance ranking.

Does a coverage percentage guarantee safe operation?

No. Defect location and size, assembly dimensions, cooling, and the operating envelope also matter.

If a ceramic target has cracked, use our ceramic target cracking evidence checklist to collect cooling, operating and assembly records before reviewing a replacement. The timing or appearance of a crack alone does not establish its cause.

Preparing drawings for a complete assembly? Use our planar versus rotary target drawing and inspection guide to separate target, backing plate or tube, finished envelope and geometry-appropriate acceptance evidence before sending the bonding-services RFQ.

Technical references

  1. Major, Hisert and Mattaeu, High Temperature, Pb-Free, Metallic Sputtering Target Bonding Using Reactive Multilayer Foil. Society of Vacuum Coaters, 2013; DOI 10.14332/svc13.proc.1084.
  2. Kurt J. Lesker, Indium Target Bonding Service. Specific service documentation and indium material context; ratings are not universal.
  3. Kurt J. Lesker, Elastomer Target Bonding Service. Formulation-specific technical documentation.
  4. US7146703B2, Low temperature sputter target/backing plate method and assembly. Patent disclosure, not independent comparative performance evidence.
