Basis Materials representative image of Indium Tin Oxide (ITO) Sputtering Targets

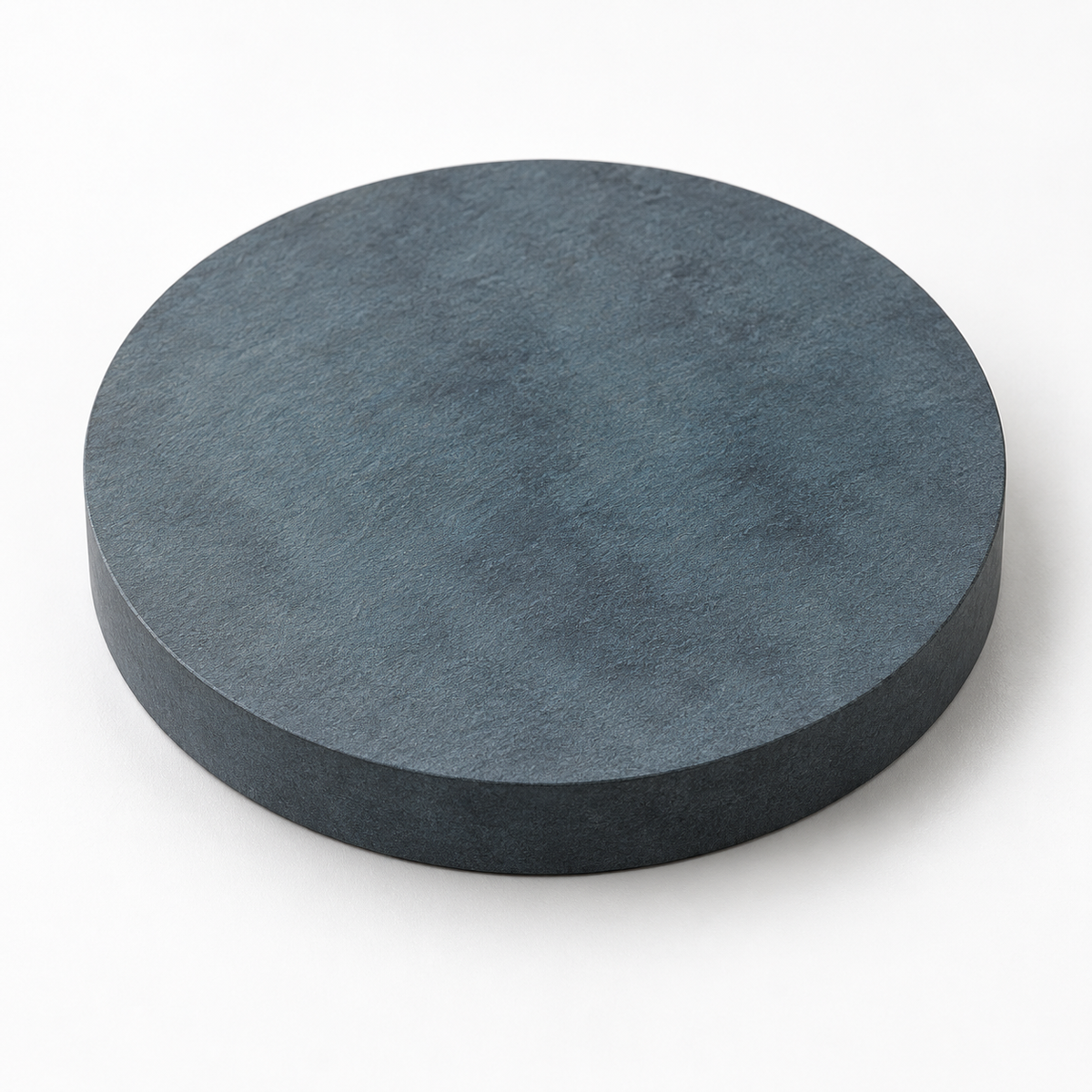

Representative image. Actual appearance may vary with composition, dimensions and manufacturing process.

BASIS MATERIALS / TARGET

Indium Tin Oxide (ITO) Sputtering Targets

Grade / formula: ITO

Made to Order

Request a quote

Overview

Indium tin oxide is a conductive oxide used in transparent electrode research. Indium Tin Oxide (ITO) Sputtering Targets is offered for thin-film deposition research. Specify the target configuration and dimensions required by your deposition system.

Technical Specifications

Technical specifications
Material Indium Tin Oxide (ITO)
Formula / designation ITO
Form Sputtering Target
Published composition and grade In2O3 • SnO2 (90:10 wt%); purity > 99.99%; relative density >99.2%
Electrical resistivity (published) 1 x 10-4 Ω·cm — Configuration context: In2O3 • SnO2 (90:10 wt%)
Thermal expansion coefficient (published) 8 x 10-6 / K — Configuration context: In2O3 • SnO2 (90:10 wt%)
Deposition method (reference) RF, DC — Configuration context: In2O3 • SnO2 (90:10 wt%)
Maximum power density (published) 20 Watts per square inch — Configuration context: In2O3 • SnO2 (90:10 wt%)
Bonding options indium bonding to oxygen free copper backing plate — Configuration context: In2O3 • SnO2 (90:10 wt%)

Final specifications, available configurations, pricing, and lead time are confirmed during quotation.

Customization & RFQ

Requested purity, geometry, dimensions, composition where applicable, and backing / bonding configuration.

Request a Quote

Request a product-specific SDS

Please request the SDS for your specific material and configuration.

Request SDS
REQUEST A QUOTE

Tell us what you need

Indium Tin Oxide (ITO) Sputtering Targets is included automatically. Tell us the form, size and quantity you need; other details are optional.

For made-to-drawing assemblies, include the drawing number and revision in your notes and email the drawing to sales@basismaterials.com. Assembly suitability and the bonding method are reviewed for your material and equipment.
