A crack in a ceramic sputtering target is an observation, not a complete failure analysis. The useful purchasing question is not simply whether to order a stronger target. It is whether the replacement needs a different geometry, mounting arrangement, backing plate, bond specification, or operating review. Those questions require information about the source and its history as well as the material.
If damage, a cooling fault, or abnormal operation is detected, follow the equipment manufacturer's shutdown and inspection procedures. This article is a specification and review guide; it does not authorize continued operation of a damaged target or provide instructions for repairing an energized source.
Separate the possible contributors
Start by distinguishing five groups: the target material itself; dimensions and mounting; the bond interface; heat removal; and the operating sequence. Lesker's target-failure guidance identifies material-dependent power handling, ramping, bonding, cathode flatness, and cooling as relevant considerations. It is a useful checklist of factors, not a universal prescription for every source. [1]
Record the ceramic designation, nominal composition, lot identity, specified purity and supplied manufacturing information. A ceramic designation alone does not establish porosity, local flaws or strength. A crack does not prove poor purity or a manufacturing defect; compare the purchase requirements with the evidence available.
Why heat flow matters

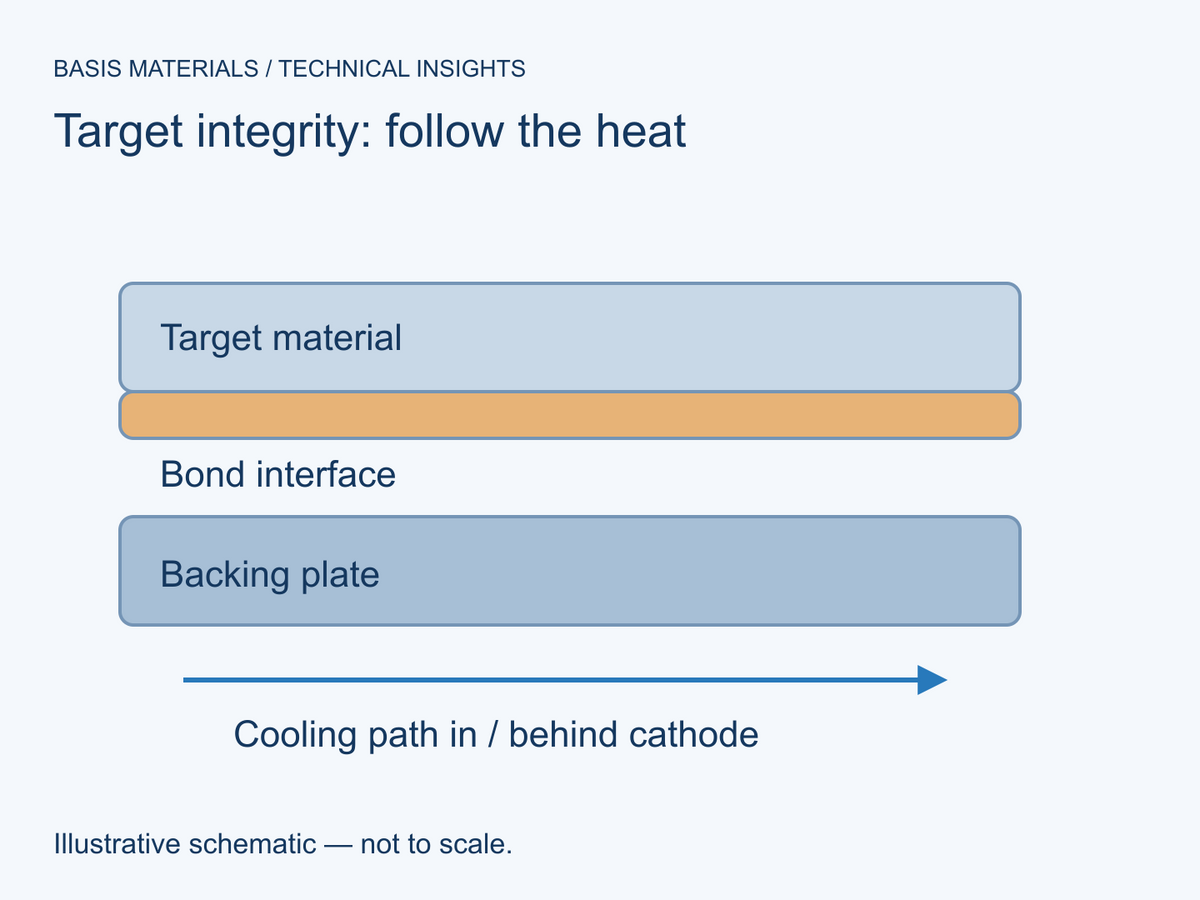

Sputtering deposits energy at the target face while heat leaves through the target and its thermal connections to the cooled source. The temperature need not be uniform across the face or through the thickness. Regions at different temperatures tend to expand differently, and surrounding material or the mounting arrangement constrains that movement. The resulting stresses depend on material properties, geometry, and boundary conditions.
An original finite-element study by Loveland and Lewis examined bonded ITO, silica, and alumina assemblies. It explored how imposed bond defects, target geometry, bond thickness, and cooling conditions affect modeled temperature and stress. Those results support examining the complete heat-transfer path, but the modeled dimensions and loading conditions are not operating limits for an unrelated assembly. [2]
Bonding helps only within a suitable assembly
A bond connects the target to a backing plate and participates in mechanical support, electrical connection, and heat transfer. It also adds an interface whose suitability must be evaluated. A well-chosen backing plate does not compensate automatically for an unsuitable bond or poor contact between the assembly and the source.
Basis Materials' existing target bonding services entry supports discussion of complete new target assemblies. State whether you need a bare target, a target with backing plate and bonding, or an assembly made to a drawing. Reuse of a customer's existing backing plate requires its own review; it should not be assumed from the request for a replacement target.
For joining-method differences, read the indium, elastomer and diffusion bonding guide. Bonding can support the target and heat-transfer path, but does not guarantee freedom from fracture. [2]
Separate source rating, target limit and assembly limit
The power supply or cathode rating describes equipment capability; it does not automatically establish a safe power for an installed ceramic target. Material, thickness, thermal contact and bond constraints must be considered together. Request the applicable target and assembly guidance for the actual source, not a limit copied from a different setup. [1, 5]
A final power setting does not describe how the assembly reached it. The starting condition, conditioning sequence, changes in power, interruptions, and shutdown sequence all belong in the operating record. Lesker's ceramic-target conditioning guidance discusses gradual power changes and notes that heat-transfer characteristics depend on the particular target and source. [5]
There is no single ramp rate, power density, or cooling flow in this article. Values quoted for one material or one manufacturer's configuration should not be transferred to another without equipment-specific guidance. Even two targets with the same nominal composition may differ in dimensions, backing plate, or bond.
Use the timing of the observation to organize questions
The following table identifies questions to investigate. It does not diagnose a cause or establish liability.
| Observed circumstance | Possible contributors | Records to collect | Question for supplier or equipment support |
|---|---|---|---|
| Damage found before installation | Handling, transport or an incoming condition; timing remains uncertain | Packaging, dated photographs, lot ID and receiving inspection | What inspection is needed before accepting or installing this assembly? |
| Cracking around initial operation | Heating history, thermal contact, cooling or installation conditions [1, 5] | Source model, mounting procedure, actual power timeline and cooling alarms | Were the target and assembly requirements consistent with this source and conditioning sequence? |
| First observed after changing target or plate | Changed geometry, interface or mounting contact [1, 2] | Old and new drawings, target and assembly thicknesses, bond details and installation records | Which dimensions and interfaces need comparison before selecting a replacement? |
| First observed after repeated cycles or cooling | Thermal history, changing erosion geometry or heat-transfer conditions; observation alone cannot distinguish them [2, 5] | Cumulative use, prior inspections, erosion observations, shutdown sequence and cooling records | Which inspection could distinguish target damage from interface or mounting problems? |
“First observed after cooling” is not equivalent to “caused by cooling.” That distinction is especially important when the face was not visible during operation. Preserve uncertainty in the report rather than converting an incomplete timeline into a definite conclusion.
Review before ordering a replacement
For an oxide target first found cracked after conditioning, collect the original specification and incoming photographs before deciding what to change. For a bonded assembly damaged after several runs, also preserve cumulative use and earlier inspection records. These are illustrative review situations, not customer incidents.
Record the target and backing-plate drawings separately, including their revision, thickness and total assembly height. Identify the cathode model, bond details if known, operating changes and cooling records. Write “unknown” when a detail is unavailable. A crack shape does not prove a hidden bond void, and replacing only one component is not automatically a remedy.
The ITO sputtering target page provides a material-specific starting point. Ask the supplier which inspection and assembly review are appropriate before ordering or continuing use of a damaged target. Repair or rebonding suitability needs individual assessment.
What to Specify When Requesting a Quote
A useful replacement or assembly inquiry separates known requirements from recommendations being requested:
- Material and nominal composition, with percentage basis for mixtures or alloys; required purity and important impurity limits.
- Target dimensions, thickness, shape, tolerances, and drawing number with revision.
- Supply scope: bare target; target plus backing plate and bonding; or complete custom assembly made to drawing.
- Backing-plate material, dimensions, mounting features, and whether a new plate is required.
- Equipment manufacturer, source model, and applicable drawing or assembly reference.
- Bonding requirement if specified, or an explicit request for a recommendation.
- Operating information relevant to review, clearly separated from requested product specifications.
- Quantity in pieces, documentation or inspection requests, and photographs or records available for discussion.
Use the ceramic and compound target collection to identify the material family. The silicon dioxide target and ITO examples are separate material inquiries, not interchangeable power configurations. For background on manufacturing and structure, read how to choose a sputtering target.
Use the product inquiry fields to retain the material and supply scope, or request a technical quotation with the full specification. Drawing details and review findings should remain associated with the same inquiry rather than being replaced by a generic request for “one target.”
Frequently asked questions
Does a crack prove that the target was defective?
No. A crack warrants investigation, but its presence alone does not separate manufacturing, transport, installation, assembly, cooling, and operating contributions. Incoming records and the operating timeline help establish which questions can actually be answered.
Does bonding guarantee that the target will not crack?
No. Bonding is part of an assembly design. Material compatibility, interface quality, dimensions, mounting, and operation still matter. A bond also does not constitute permission to continue operating damaged equipment.
Does the power-supply rating determine allowable target power?
No. The equipment rating alone does not define the target or bond limit. Provide the source model, target geometry, backing plate, and bond details, and obtain the applicable equipment and target guidance. Avoid transferring a numerical rule from a different setup.
Is a higher-purity target automatically more resistant to cracking?
No. Purity and fracture resistance are different questions. Review the specified material, geometry, assembly and operating evidence; a higher purity number alone is not a mechanical-performance guarantee.
